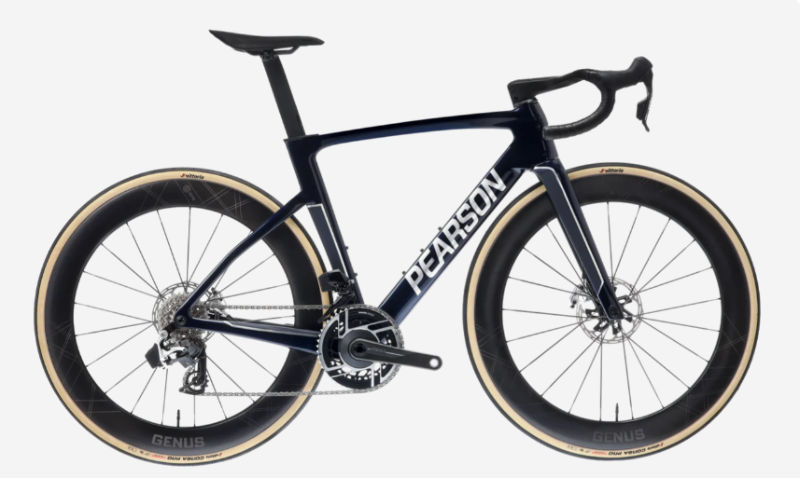

2025 Pearson Shift 2.0 geometry
Full frame geometry for the 2025 Pearson Shift 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 515 | 373 | 75 | 71.5 | 105 | 510 | 485 | 72 | 406 | 968 | 45 | 67 |
| 52 | 527 | 378 | 74 | 72.5 | 115 | 531 | 520 | 72 | 406 | 968 | 45 | 60 |
| 54 | 547 | 384 | 74 | 73 | 135 | 541 | 540 | 72 | 406 | 976 | 45 | 57 |
| 56 | 568 | 392 | 73.5 | 73.5 | 155 | 562 | 560 | 72 | 410 | 990 | 45 | 54 |
| 58 | 592 | 404 | 73 | 73.5 | 180 | 577 | 580 | 72 | 410 | 1009 | 45 | 54 |
All measurements in millimetres unless marked (°) for angles.
