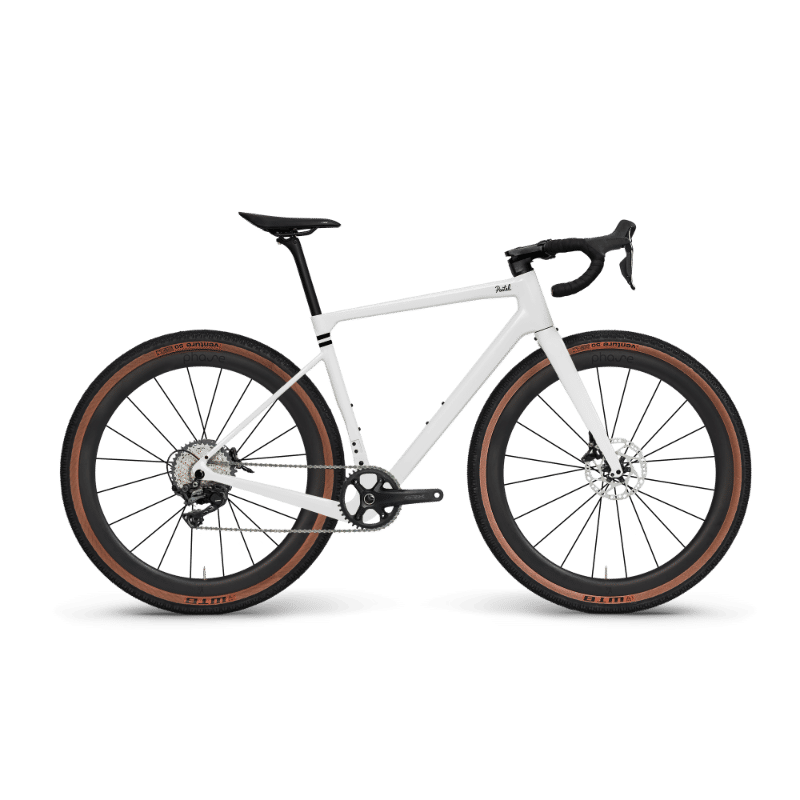

2026 Pastel WHTIF 2.0 geometry
Full frame geometry for the 2026 Pastel WHTIF 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 542 | 375 | 74.5 | 70 | 120 | 525 | 475 | 70 | 604 | 435 | 1029 | 45 |
| S | 558 | 380 | 73.5 | 70.3 | 135 | 545 | 495 | 70 | 612 | 435 | 1037 | 45 |
| M | 575 | 390 | 73.5 | 70.5 | 150 | 560 | 515 | 70 | 625 | 435 | 1050 | 45 |
| L | 596 | 400 | 73.5 | 72 | 170 | 577 | 535 | 70 | 628 | 435 | 1053 | 45 |
| XL | 619 | 412 | 73.5 | 72.5 | 190 | 595 | 555 | 70 | 641 | 435 | 1067 | 45 |
All measurements in millimetres unless marked (°) for angles.
