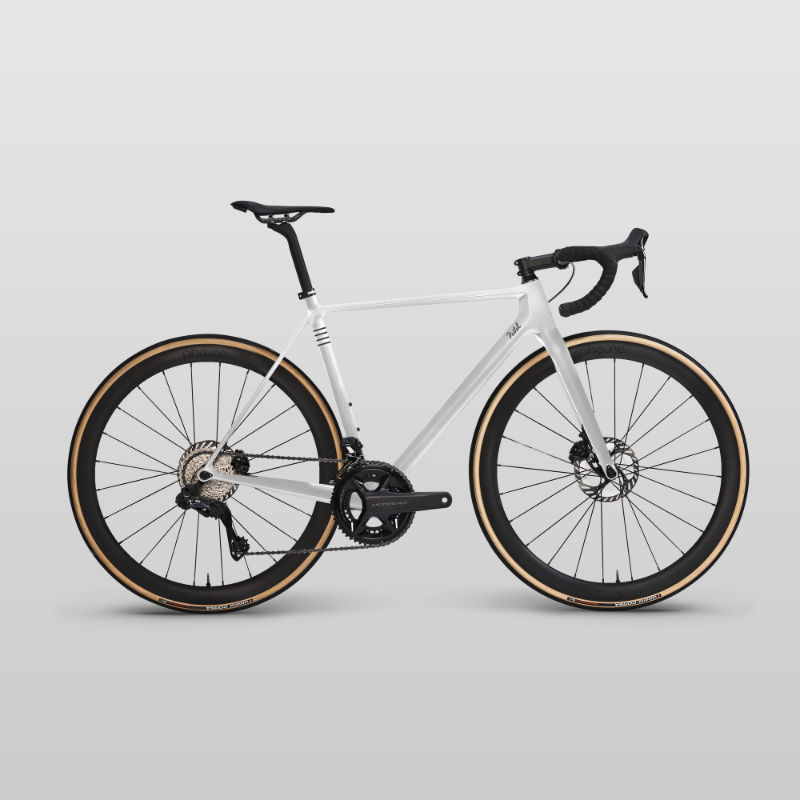

2026 Pastel Cima geometry
Full frame geometry for the 2026 Pastel Cima, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 492 | 370 | 73 | 71 | 85 | 520 | 74.5 | 572 | 410 | 970 | 51 |
| 51 | 513 | 375 | 73 | 72 | 105 | 532 | 74.5 | 576 | 410 | 974 | 51 |
| 54 | 534 | 384 | 73 | 73 | 125 | 548 | 72 | 578 | 410 | 977 | 45 |
| 56 | 560 | 393 | 73 | 73 | 150 | 564 | 72 | 593 | 410 | 993 | 45 |
| 58 | 585 | 402 | 73 | 73 | 180 | 581 | 69.5 | 610 | 410 | 1011 | 45 |
| 61 | 609 | 412 | 73 | 73 | 205 | 598 | 69.5 | 627 | 410 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
