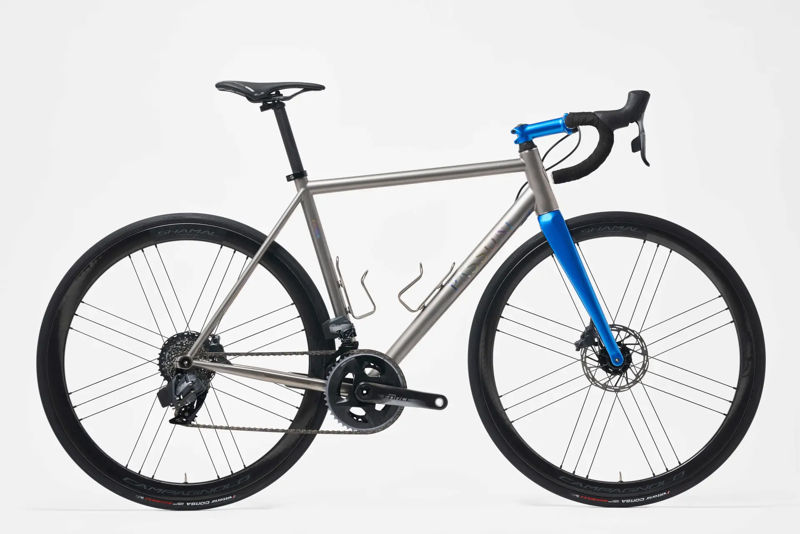

2022 Passoni Prima Disco geometry
Full frame geometry for the 2022 Passoni Prima Disco, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 48 | 509 | 350 | 74.5 | 120 | 495 | 470 | 570 | 404 |
| 50 | 523 | 362 | 74.5 | 130 | 510 | 490 | 575 | 404 |
| 52 | 533 | 371 | 74 | 135 | 525 | 500 | 573 | 403 |
| 54 | 554 | 380 | 73.5 | 153 | 545 | 520 | 580 | 405 |
| 56 | 577 | 382 | 73 | 175 | 558 | 545 | 583 | 407 |
| 58 | 605 | 390 | 72.5 | 208 | 580 | 575 | 600 | 407 |
All measurements in millimetres unless marked (°) for angles.
