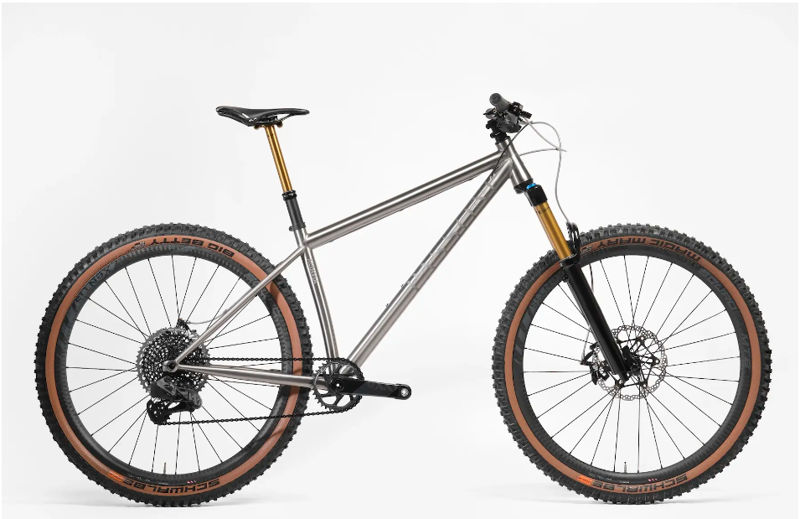

2024 Passoni Altavia geometry
Full frame geometry for the 2024 Passoni Altavia, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 48 | 525 | 344 | 74.5 | 118 | 494 | 474 | 575 | 440 |
| 50 | 539 | 352 | 74 | 129 | 510 | 485 | 583 | 440 |
| 52 | 549 | 361 | 73.5 | 137 | 526 | 500 | 587 | 440 |
| 54 | 559 | 373 | 73 | 145 | 545 | 520 | 591 | 440 |
| 56 | 591 | 378 | 72.5 | 173 | 565 | 545 | 606 | 440 |
| 58 | 616 | 386 | 72 | 202 | 587 | 575 | 628 | 440 |
All measurements in millimetres unless marked (°) for angles.
