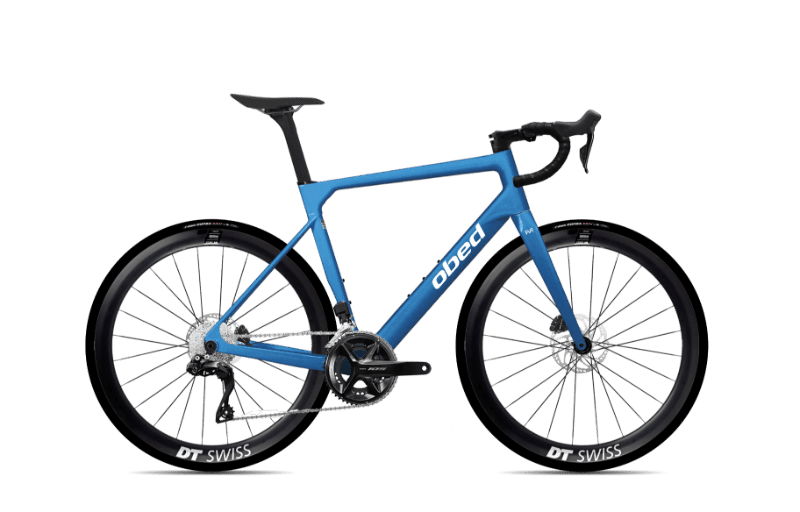

2026 Obed RVR geometry
Full frame geometry for the 2026 Obed RVR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 370 | 74.5 | 70 | 119 | 516 | 440 | 739 | 74 | 591 | 415 | 994 | 47 |
| S | 550 | 375 | 74.5 | 71 | 136 | 521 | 470 | 765 | 74 | 593 | 415 | 997 | 47 |
| M | 570 | 380 | 74 | 72 | 156 | 543 | 500 | 792 | 72 | 596 | 415 | 1000 | 47 |
| ML | 590 | 385 | 73.5 | 72.5 | 177 | 560 | 530 | 820 | 70 | 602 | 415 | 1007 | 47 |
| L | 605 | 390 | 73.5 | 73 | 192 | 570 | 560 | 835 | 70 | 607 | 415 | 1012 | 47 |
All measurements in millimetres unless marked (°) for angles.
