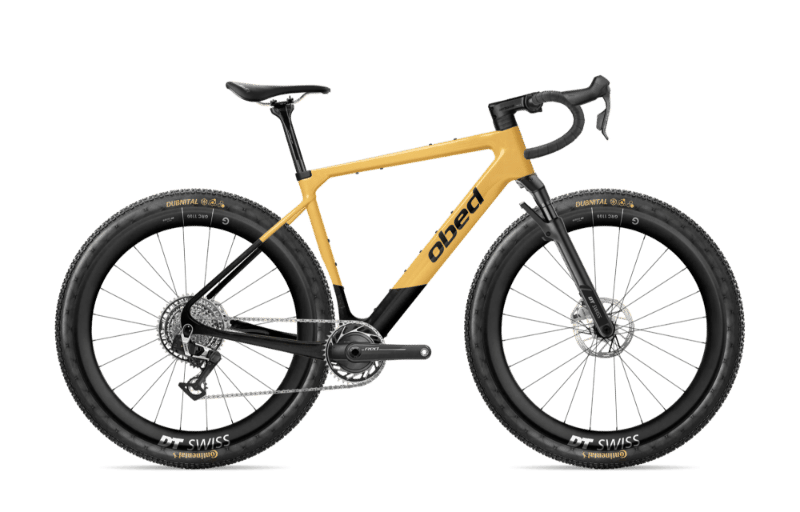

2026 Obed GVR geometry
Full frame geometry for the 2026 Obed GVR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 370 | 75 | 69 | 87 | 512 | 440 | 727 | 75 | 609 | 430 | 1025 | 53 |
| S | 550 | 385 | 74.5 | 70 | 105 | 538 | 470 | 760 | 74 | 619 | 430 | 1039 | 53 |
| M | 570 | 400 | 74 | 70.5 | 125 | 563 | 490 | 801 | 73 | 636 | 430 | 1056 | 53 |
| L | 590 | 410 | 73.5 | 71 | 144 | 585 | 525 | 831 | 72 | 648 | 430 | 1068 | 53 |
| XL | 610 | 425 | 73.5 | 71 | 166 | 610 | 560 | 859 | 72 | 670 | 430 | 1090 | 53 |
All measurements in millimetres unless marked (°) for angles.
