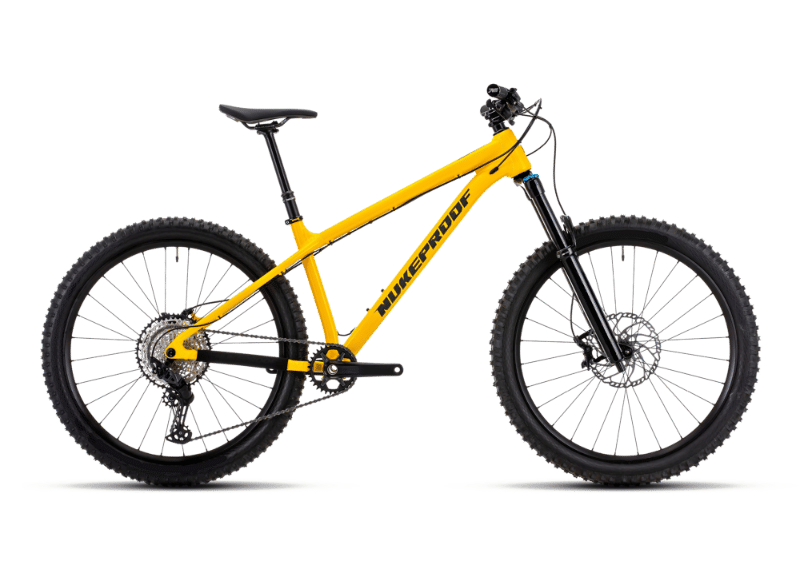

2026 Nukeproof Scout geometry
Full frame geometry for the 2026 Nukeproof Scout, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 616.2 | 428.3 | 74 | 64.5 | 110 | 605 | 380 | 680.2 | 50 | 741.1 | 422.5 | 1158.9 | 37 | 130.7 |
| M 27.5 | 625.4 | 446 | 74 | 64.5 | 120 | 625 | 410 | 686.6 | 50 | 762.7 | 425 | 1183.2 | 37 | 130.7 |
| M 29 | 642.2 | 440.8 | 74 | 64.5 | 100 | 624.7 | 410 | 692 | 70 | 763.5 | 432.5 | 1187.1 | 42 | 132.3 |
| L | 651.2 | 458.3 | 74 | 64.5 | 110 | 645 | 440 | 707.6 | 70 | 785.2 | 435 | 1211.4 | 42 | 132.3 |
| XL | 660.3 | 475.7 | 74 | 64.5 | 120 | 665 | 460 | 711.8 | 70 | 806.8 | 437.5 | 1235.6 | 42 | 132.3 |
| XXL | 669.3 | 493.1 | 74 | 64.5 | 130 | 685 | 480 | 715.8 | 70 | 828.4 | 440 | 1259.9 | 42 | 132.3 |
All measurements in millimetres unless marked (°) for angles.
