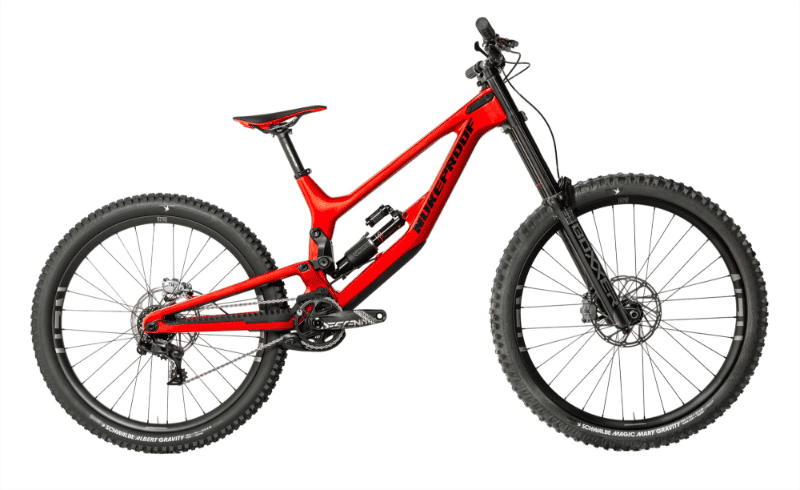

2026 Nukeproof Dissent Carbon geometry
Full frame geometry for the 2026 Nukeproof Dissent Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NP1 | 622 | 445 | 76.5 | 63 | 100 | 595 | 405 | 705 | 0 | 806 | 445 | 1251 | 46 | 139.5 |
| NP2 | 627 | 465 | 76.5 | 63 | 105 | 610 | 405 | 705 | 0 | 828 | 445 | 1273 | 46 | 139.5 |
| NP3 | 631 | 485 | 76.5 | 63 | 110 | 630 | 405 | 705 | 0 | 851 | 445 | 1295 | 46 | 139.5 |
All measurements in millimetres unless marked (°) for angles.
