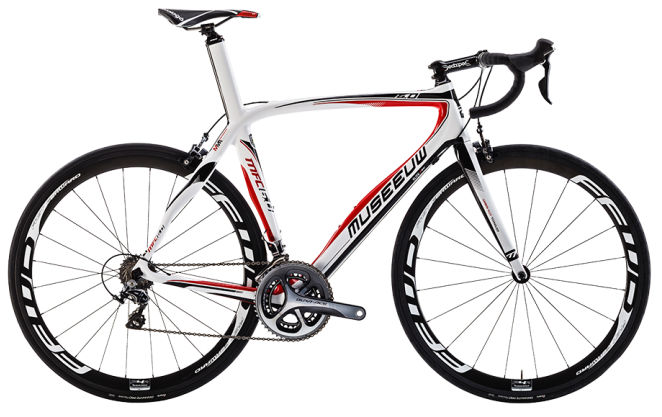

2015 Museeuw MFC 6.0 geometry
Full frame geometry for the 2015 Museeuw MFC 6.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504 | 384 | 75.3 | 71 | 105 | 516 | 500 | 774 | 70 | 582 | 405 | 976 | 43 | 71 |
| S | 518 | 385 | 74.5 | 71 | 120 | 529 | 520 | 793 | 70 | 589 | 405 | 984 | 43 | 71 |
| M | 540 | 387 | 74 | 72 | 139 | 542 | 540 | 815 | 70 | 590 | 405 | 985 | 43 | 64 |
| L | 557 | 393 | 73.5 | 72 | 157 | 549 | 560 | 835 | 70 | 591 | 405 | 986 | 43 | 64 |
| XL | 575 | 396 | 73 | 72.7 | 173 | 562 | 580 | 855 | 70 | 592 | 408 | 990 | 43 | 60 |
| XXL | 580 | 403 | 73 | 72.7 | 178 | 580 | 600 | 868 | 70 | 610 | 410 | 1010 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
