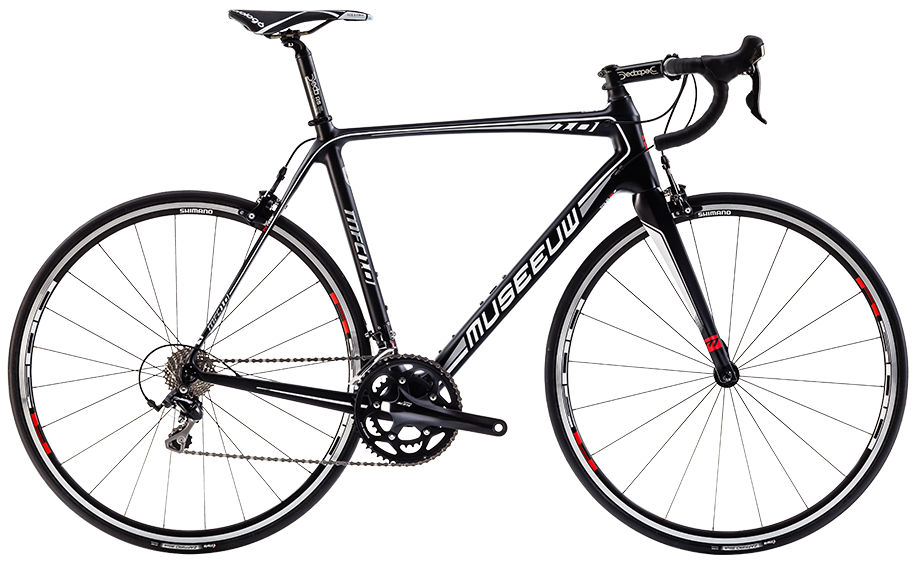

2015 Museeuw MFC 1.0 geometry
Full frame geometry for the 2015 Museeuw MFC 1.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 378 | 75 | 71 | 116 | 516 | 490 | 776 | 67 | 572 | 405 | 968 | 45 | 68 |
| S | 538 | 381 | 74.5 | 72.5 | 136 | 530 | 520 | 806 | 67 | 581 | 405 | 977 | 45 | 63 |
| M | 555 | 386 | 74 | 73 | 156 | 545 | 540 | 825 | 67 | 586 | 405 | 982 | 45 | 56 |
| L | 574 | 390 | 73.5 | 73 | 176 | 560 | 560 | 846 | 67 | 596 | 405 | 992 | 45 | 56 |
| XL | 593 | 397 | 73.3 | 73 | 196 | 575 | 580 | 866 | 67 | 606 | 408 | 1004 | 45 | 56 |
| XXL | 601 | 407 | 73 | 74 | 216 | 595 | 610 | 886 | 67 | 610 | 410 | 1010 | 45 | 50 |
All measurements in millimetres unless marked (°) for angles.
