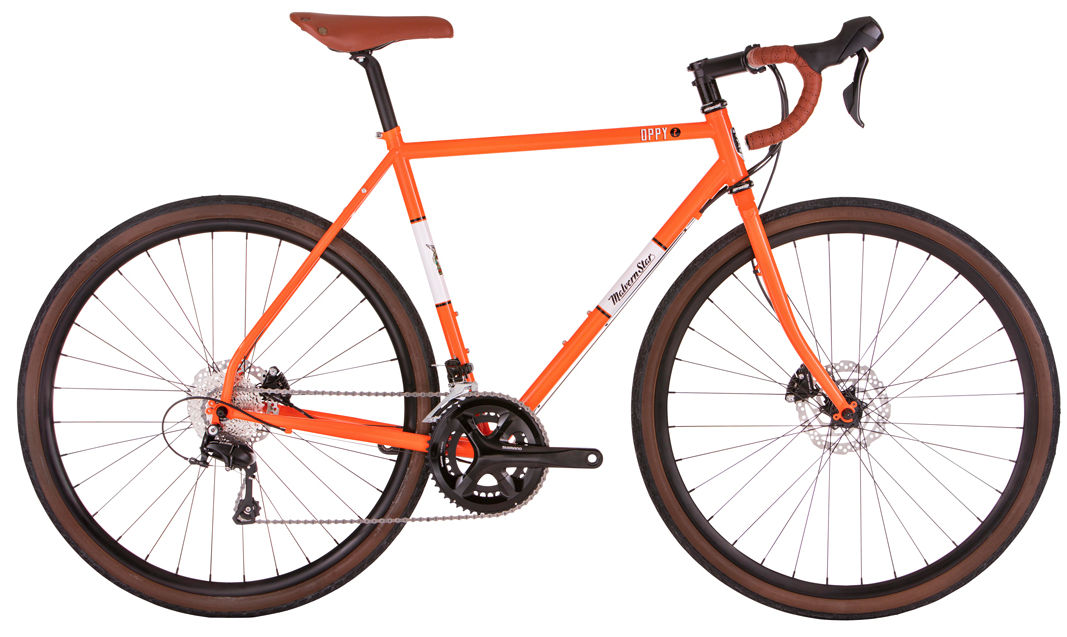

2017 Malvern Star Oppy S Heritage geometry
Full frame geometry for the 2017 Malvern Star Oppy S Heritage, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 544 | 374 | 75 | 71 | 105 | 520 | 530 | 812 | 72 | 591 | 440 | 1020 | 47 | 69 |
| M | 563 | 373 | 73 | 71 | 125 | 545 | 555 | 837 | 72 | 596 | 440 | 1026 | 47 | 69 |
| L | 581 | 387 | 73 | 71.5 | 145 | 565 | 575 | 859 | 70 | 612 | 440 | 1042 | 47 | 66 |
| XL | 596 | 397 | 72.5 | 71.5 | 160 | 585 | 585 | 873 | 70 | 627 | 440 | 1057 | 47 | 66 |
All measurements in millimetres unless marked (°) for angles.
