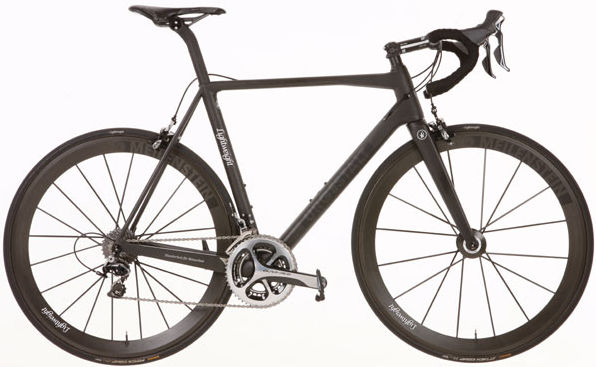

2015 Lightweight Urgestalt MKI geometry
Full frame geometry for the 2015 Lightweight Urgestalt MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 518 | 367 | 74.5 | 71.5 | 110 | 515 | 767 | 72 | 405 | 962 | 45 | 64 |
| 51 | 530 | 378 | 74 | 72 | 120 | 530 | 790 | 72 | 405 | 971 | 45 | 61 |
| 54 | 548 | 382 | 73.5 | 73 | 140 | 545 | 818 | 69 | 405 | 975 | 45 | 55 |
| 56 | 563 | 393 | 73.5 | 73 | 155 | 560 | 836 | 69 | 405 | 990 | 45 | 55 |
| 58 | 582 | 398 | 73 | 73.5 | 175 | 575 | 859 | 67 | 405 | 996 | 45 | 52 |
| 60 | 601 | 402 | 72.5 | 73.5 | 195 | 590 | 879 | 67 | 408 | 1009 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
