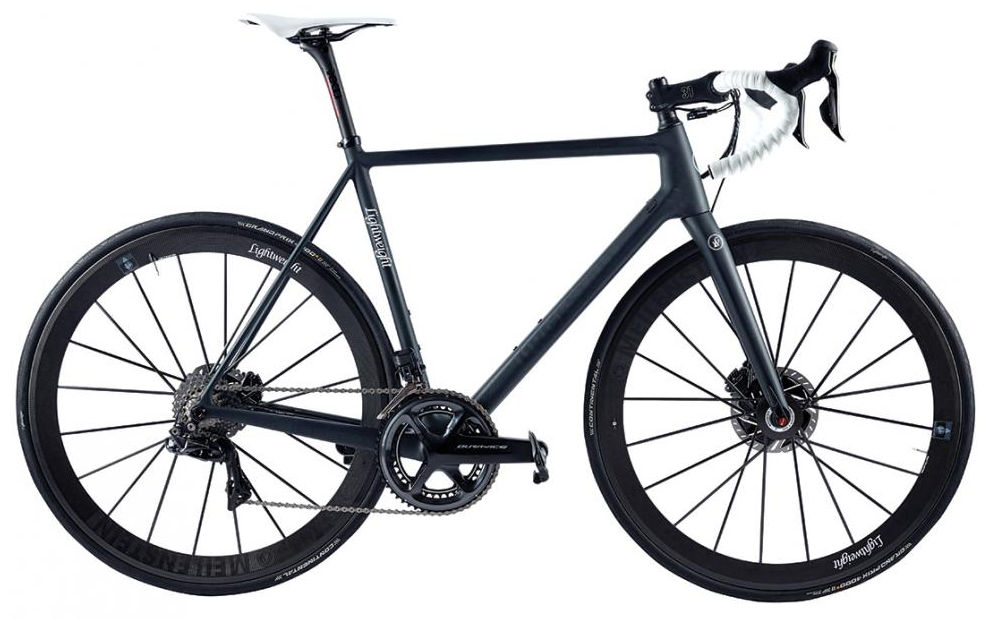

2018 Lightweight Urgestalt Disc geometry
Full frame geometry for the 2018 Lightweight Urgestalt Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 518 | 371 | 74.5 | 71.5 | 110 | 515 | 480 | 764 | 72 | 410 | 972 | 45 | 64 |
| 51 | 530 | 380 | 74.2 | 72.2 | 120 | 530 | 510 | 786 | 72 | 410 | 978 | 45 | 61 |
| 54 | 548 | 383 | 73.5 | 73 | 140 | 545 | 540 | 815 | 69 | 410 | 980 | 45 | 55 |
| 56 | 563 | 393 | 73.5 | 73 | 155 | 560 | 560 | 833 | 69 | 410 | 996 | 45 | 55 |
| 58 | 582 | 397 | 73 | 73.5 | 175 | 575 | 580 | 855 | 67 | 410 | 1001 | 45 | 52 |
| 60 | 601 | 401 | 72.5 | 73.5 | 195 | 590 | 600 | 876 | 67 | 410 | 1010 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
