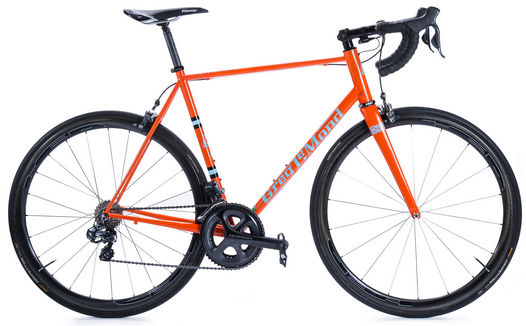

2014 Lemond Washoe geometry
Full frame geometry for the 2014 Lemond Washoe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 527 | 373 | 74 | 72 | 113 | 524 | 738 | 73 | 571 | 406 | 966 | 43 | 63 |
| XS | 537 | 372 | 73.5 | 72.5 | 125 | 531 | 758 | 70 | 569 | 406 | 965 | 43 | 60 |
| S | 556 | 375 | 73 | 73 | 142 | 545 | 777 | 70 | 573 | 408 | 971 | 43 | 57 |
| M | 574 | 390 | 73 | 73.5 | 161 | 565 | 798 | 68 | 589 | 408 | 987 | 43 | 54 |
| L | 590 | 389 | 72.5 | 73.5 | 179 | 575 | 817 | 68 | 592 | 409 | 992 | 43 | 54 |
| XL | 610 | 399 | 72.5 | 74 | 197 | 591 | 836 | 68 | 602 | 409 | 1002 | 43 | 51 |
| XXL | 627 | 402 | 72 | 74 | 215 | 606 | 854 | 68 | 610 | 411 | 1012 | 43 | 51 |
All measurements in millimetres unless marked (°) for angles.
