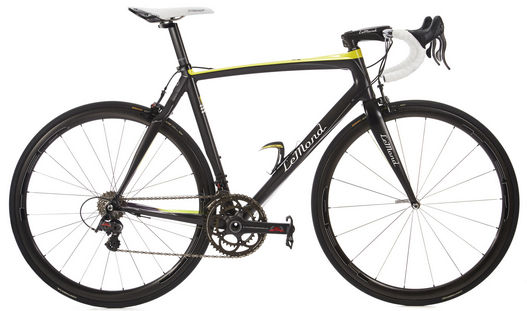

2014 Lemond TdF geometry
Full frame geometry for the 2014 Lemond TdF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 518 | 348 | 74.7 | 71 | 122 | 490 | 747 | 68 | 576 | 400 | 966 | 45 | 67 |
| XS | 530 | 355 | 73.7 | 71.5 | 133 | 510 | 760 | 68 | 578 | 400 | 968 | 45 | 64 |
| S | 547 | 363 | 73 | 72 | 149 | 530 | 777 | 68 | 578 | 402 | 970 | 45 | 61 |
| M | 567 | 377 | 73 | 73 | 166 | 550 | 796 | 68 | 585 | 402 | 977 | 45 | 55 |
| L | 586 | 391 | 73 | 73 | 186 | 570 | 815 | 68 | 599 | 402 | 991 | 45 | 55 |
| XL | 588 | 410 | 73 | 73.5 | 186 | 590 | 834 | 68 | 605 | 402 | 997 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
