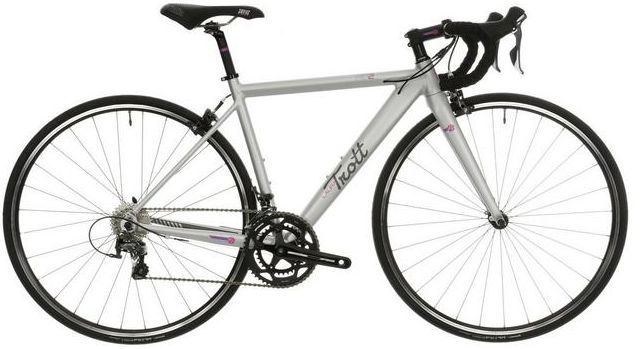

2017 Laura Trott RD geometry
Full frame geometry for the 2017 Laura Trott RD, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 492 | 378 | 75 | 71 | 90 | 510 | 450 | 734 | 73 | 575 | 410 | 974 | 48 | 64 |
| S | 494 | 388 | 75 | 71.5 | 90 | 520 | 485 | 753 | 73 | 581 | 410 | 980 | 48 | 61 |
| M | 511 | 390 | 74.5 | 72 | 110 | 532 | 515 | 781 | 70 | 586 | 410 | 986 | 48 | 58 |
| L | 534 | 392 | 74 | 73 | 130 | 545 | 540 | 806 | 70 | 586 | 410 | 985 | 48 | 52 |
All measurements in millimetres unless marked (°) for angles.
