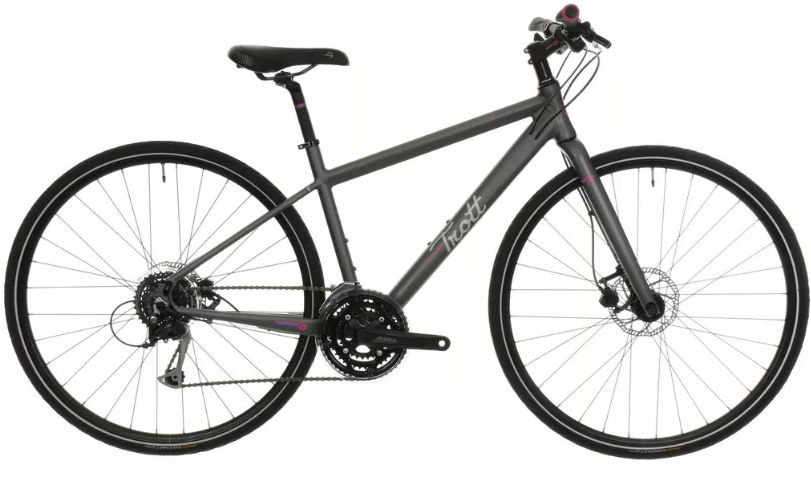

2017 Laura Trott HYB1 geometry
Full frame geometry for the 2017 Laura Trott HYB1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 533 | 387 | 75 | 69.5 | 120 | 530 | 380 | 738 | 65 | 613 | 440 | 1044 | 45 | 77 |
| M | 535 | 397 | 74 | 70 | 120 | 550 | 430 | 766 | 65 | 618 | 440 | 1049 | 45 | 74 |
| L | 557 | 415 | 73.5 | 70.5 | 145 | 580 | 480 | 807 | 62 | 640 | 440 | 1073 | 45 | 71 |
All measurements in millimetres unless marked (°) for angles.
