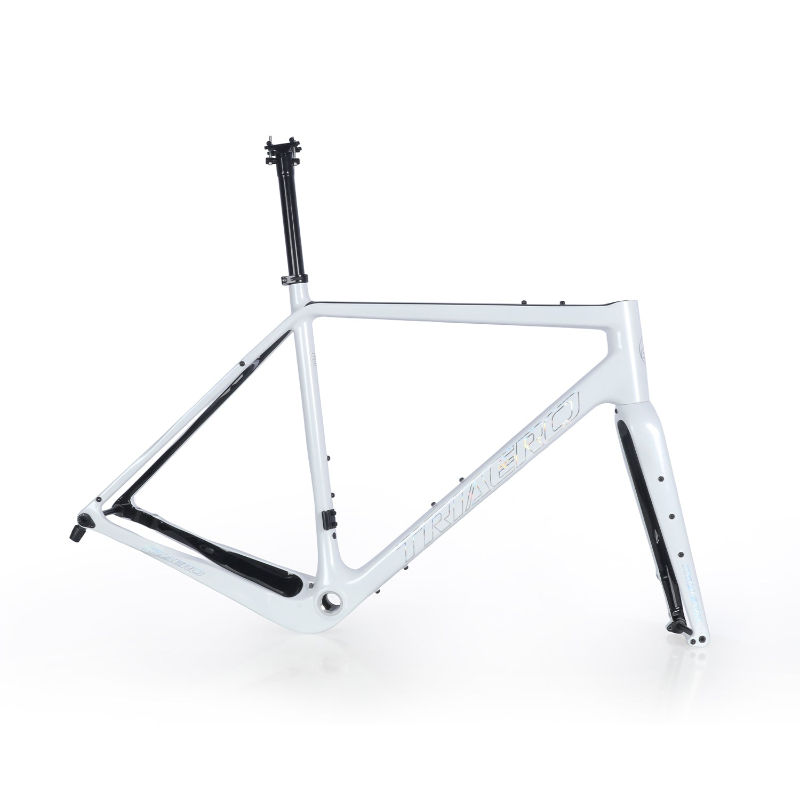

2026 ICAN X-Gravel 2 geometry
Full frame geometry for the 2026 ICAN X-Gravel 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 536.6 | 371.1 | 74.5 | 70.5 | 120 | 520 | 67 | 594.2 | 435 | 1020.2 | 50 |
| 52 | 557.4 | 375.1 | 74 | 71 | 140 | 535 | 67 | 600.5 | 435 | 1026.6 | 50 |
| 54 | 568 | 376 | 73 | 71.5 | 150 | 550 | 67 | — | 435 | 1026.6 | 50 |
| 56 | 589.8 | 384.6 | 73 | 72 | 170 | 565 | 67 | 610.7 | 435 | 1036.8 | 50 |
| 58 | 608.9 | 393.7 | 73 | 72 | 190 | 580 | 67 | 626 | 435 | 1052.2 | 50 |
All measurements in millimetres unless marked (°) for angles.
