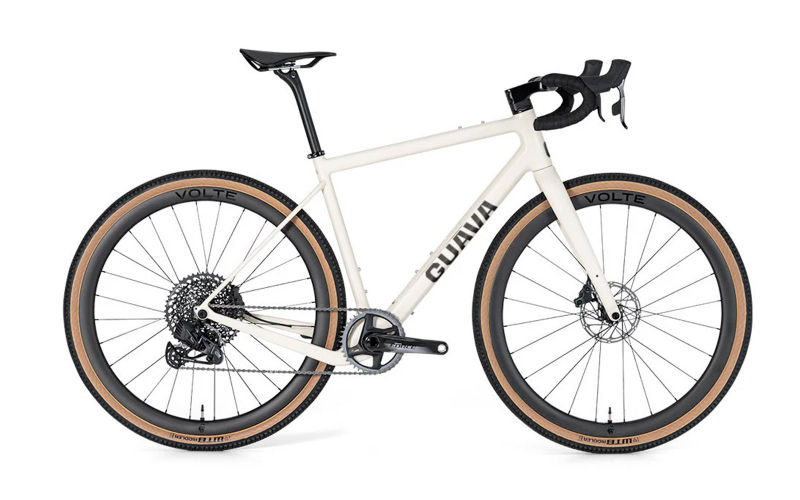

2026 Guava Spot geometry
Full frame geometry for the 2026 Guava Spot, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 560 | 370 | 73.5 | 70.5 | 130 | 538 | 470 | 430 | 1019 |
| M | 579 | 375 | 73 | 70.5 | 150 | 552 | 495 | 430 | 1030 |
| L | 602 | 384 | 73 | 71.5 | 170 | 568 | 520 | 430 | 1037 |
| XL | 621 | 395 | 73 | 71.5 | 190 | 585 | 540 | 430 | 1054 |
All measurements in millimetres unless marked (°) for angles.
