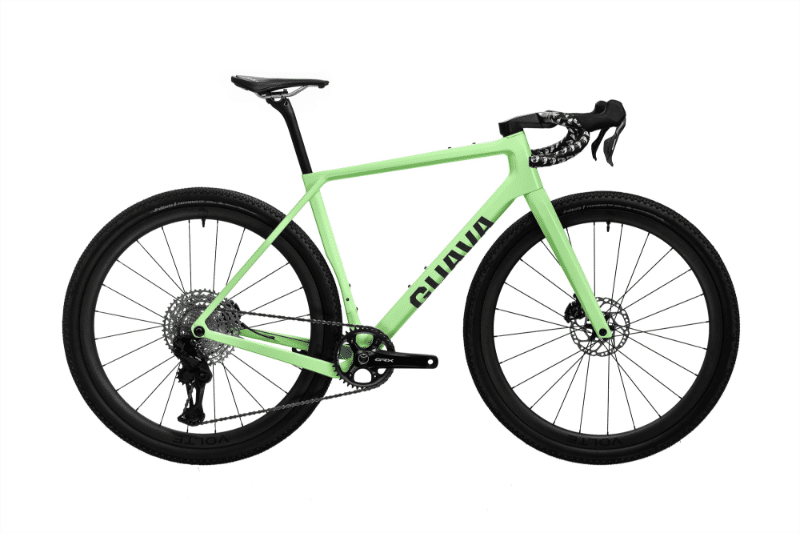

2026 Guava Ace geometry
Full frame geometry for the 2026 Guava Ace, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 532 | 366 | 73 | 70.5 | 110 | 529 | 450 | 74 | 584 | 425 | 1002 | 48 |
| S | 551 | 378 | 73 | 70 | 130 | 546 | 470 | 74 | 603 | 425 | 1022 | 48 |
| M | 572 | 390 | 73 | 70.5 | 150 | 565 | 495 | 74 | 618 | 425 | 1036 | 48 |
| L | 593 | 402 | 73 | 71 | 170 | 583 | 520 | 74 | 631 | 425 | 1050 | 48 |
| XL | 612 | 414 | 73 | 71 | 190 | 601 | 540 | 74 | 650 | 425 | 1069 | 48 |
All measurements in millimetres unless marked (°) for angles.
