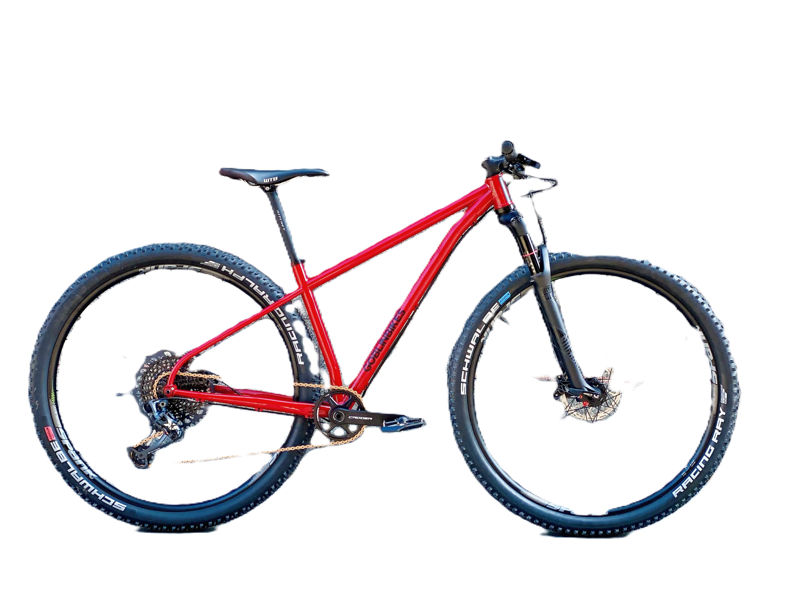

2023 Goblin Zero4 geometry
Full frame geometry for the 2023 Goblin Zero4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 389 | 74 | 69 | 80 | 560 | 400 | 65 | 425 |
| M | 606 | 426 | 74 | 69 | 90 | 600 | 440 | 65 | 425 |
| L | 615 | 448 | 74 | 69 | 100 | 625 | 500 | 65 | 425 |
| XL | 634 | 468 | 74 | 69 | 120 | 650 | 520 | 65 | 425 |
All measurements in millimetres unless marked (°) for angles.
