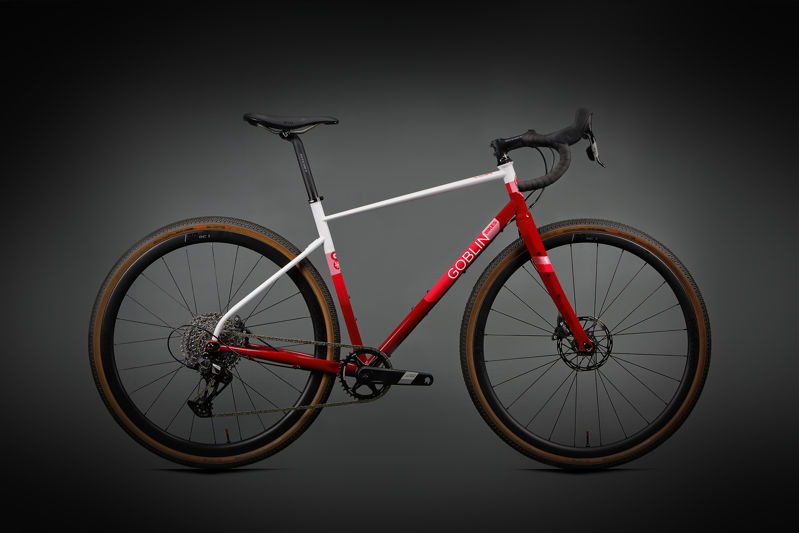

2023 Goblin GB02 geometry
Full frame geometry for the 2023 Goblin GB02, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 554 | 376 | 74 | 70 | 140 | 535 | 435 | 80 | 430 | 47 |
| M | 577 | 390 | 74 | 71 | 160 | 555 | 500 | 80 | 430 | 47 |
| L | 599 | 412 | 74 | 71 | 180 | 575 | 530 | 80 | 430 | 47 |
All measurements in millimetres unless marked (°) for angles.
