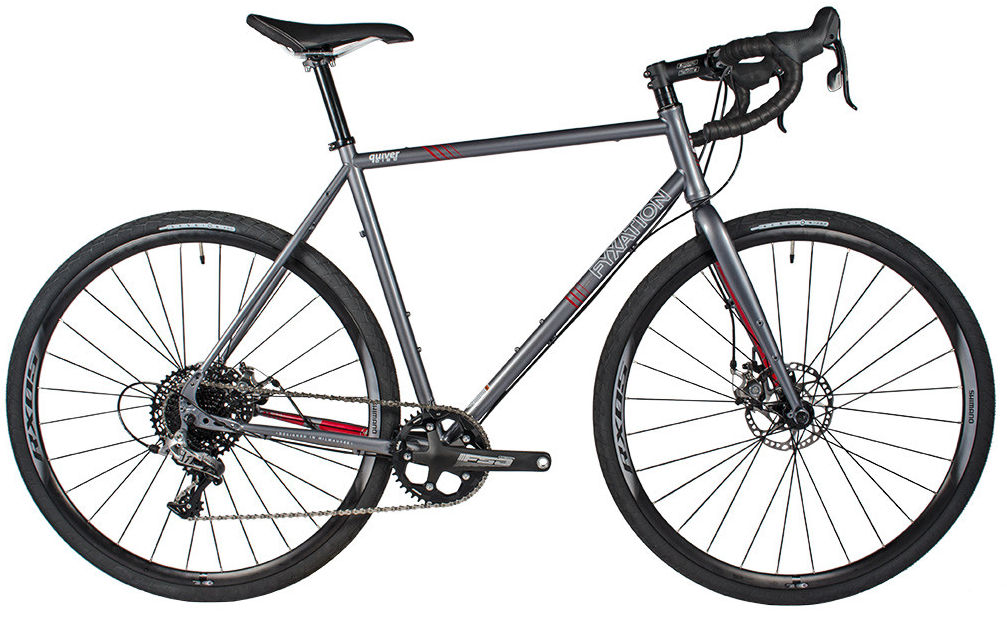

2016 Fyxation Quiver Disc geometry
Full frame geometry for the 2016 Fyxation Quiver Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 532 | 365 | 75 | 70 | 110 | 510 | 460 | 725 | 70 | 584 | 427 | 1002 | 45 | 74 |
| 49 | 542 | 382 | 75 | 71 | 117 | 529 | 490 | 745 | 70 | 595 | 427 | 1013 | 45 | 67 |
| 53 | 563 | 387 | 73.5 | 72 | 126 | 537 | 530 | 770 | 70 | 595 | 427 | 1012 | 45 | 61 |
| 56 | 583 | 390 | 73.5 | 72 | 157 | 565 | 560 | 805 | 70 | 607 | 427 | 1027 | 45 | 61 |
| 59 | 617 | 392 | 73 | 72.5 | 190 | 580 | 590 | 835 | 70 | 614 | 427 | 1032 | 45 | 58 |
| 62 | 641 | 397 | 72.5 | 72.5 | 216 | 600 | 620 | 865 | 70 | 627 | 427 | 1046 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
