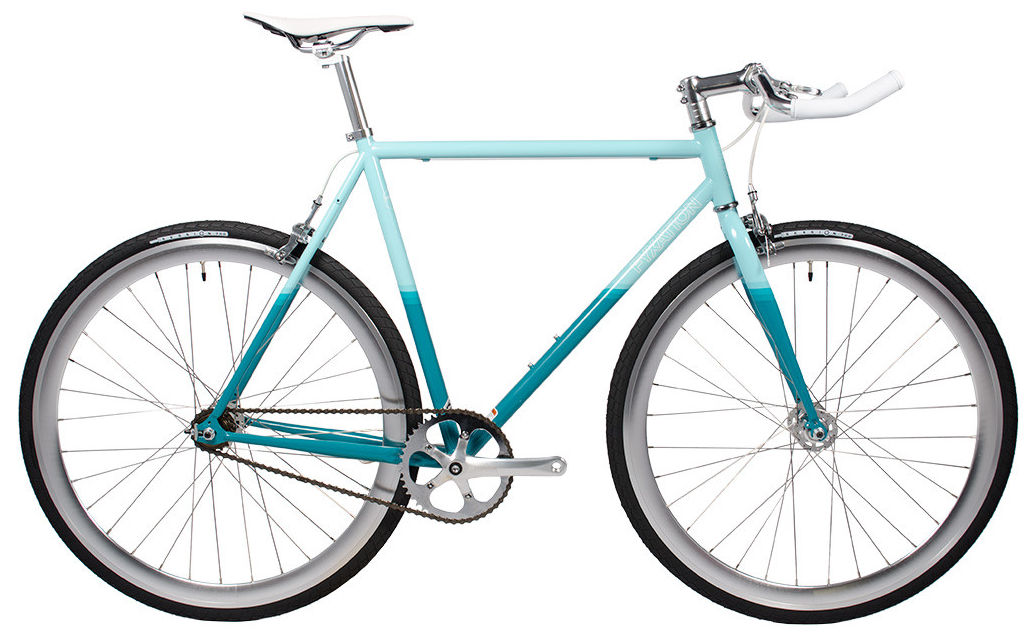

2016 Fyxation Eastside geometry
Full frame geometry for the 2016 Fyxation Eastside, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 505 | 395 | 75 | 73 | 95 | 530 | 490 | 765 | 60 | 572 | 400 | 972 | 38 | 62 |
| 52 | 514 | 397 | 75 | 73 | 105 | 535 | 520 | 791 | 60 | 577 | 400 | 972 | 38 | 62 |
| 55 | 538 | 416 | 75 | 73 | 130 | 560 | 550 | 816 | 60 | 603 | 400 | 979 | 38 | 62 |
| 58 | 566 | 428 | 75 | 73 | 159 | 580 | 580 | 842 | 60 | 624 | 400 | 993 | 38 | 62 |
All measurements in millimetres unless marked (°) for angles.
