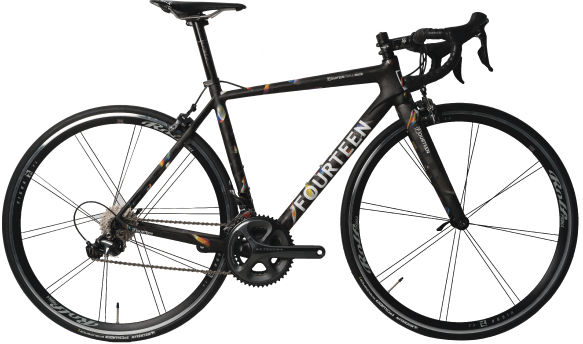

2017 Fourteen Versus geometry
Full frame geometry for the 2017 Fourteen Versus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 532 | 359 | 74 | 71.5 | 125 | 512 | 480 | 772 | 72 | 570 | 403 | 957 | 45 |
| S | 538 | 362 | 74.5 | 72.5 | 130 | 520 | 500 | 778 | 72 | 574 | 403 | 965 | 45 |
| M | 551 | 371 | 73 | 73 | 145 | 540 | 540 | 792 | 70 | 579 | 403 | 972 | 45 |
| L | 566 | 382 | 73 | 73.5 | 160 | 555 | 560 | 806 | 70 | 590 | 403 | 987 | 45 |
| XL | 575 | 399 | 73 | 73.5 | 170 | 575 | 580 | 816 | 70 | 614 | 403 | 1000 | 45 |
All measurements in millimetres unless marked (°) for angles.
