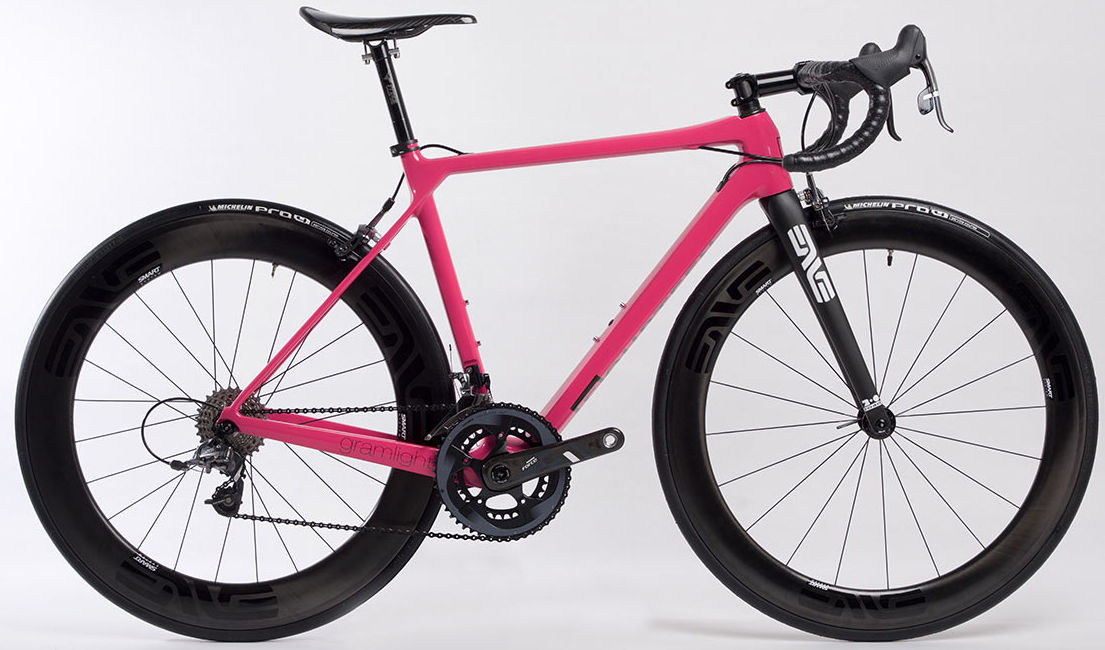

2015 Fourteen Gramlight geometry
Full frame geometry for the 2015 Fourteen Gramlight, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 502 | 369 | 74.5 | 71.5 | 100 | 510 | 710 | 70 | 563 | 410 | 963 | 43 |
| S | 527 | 373 | 74 | 72.5 | 123 | 525 | 744 | 70 | 566 | 410 | 967 | 43 |
| M | 545 | 383 | 73.5 | 73 | 140 | 545 | 761 | 70 | 578 | 410 | 978 | 43 |
| L | 564 | 388 | 73 | 73.5 | 158 | 560 | 778 | 70 | 583 | 410 | 983 | 43 |
| XL | 579 | 398 | 73 | 73.5 | 174 | 575 | 796 | 70 | 598 | 410 | 998 | 43 |
All measurements in millimetres unless marked (°) for angles.
