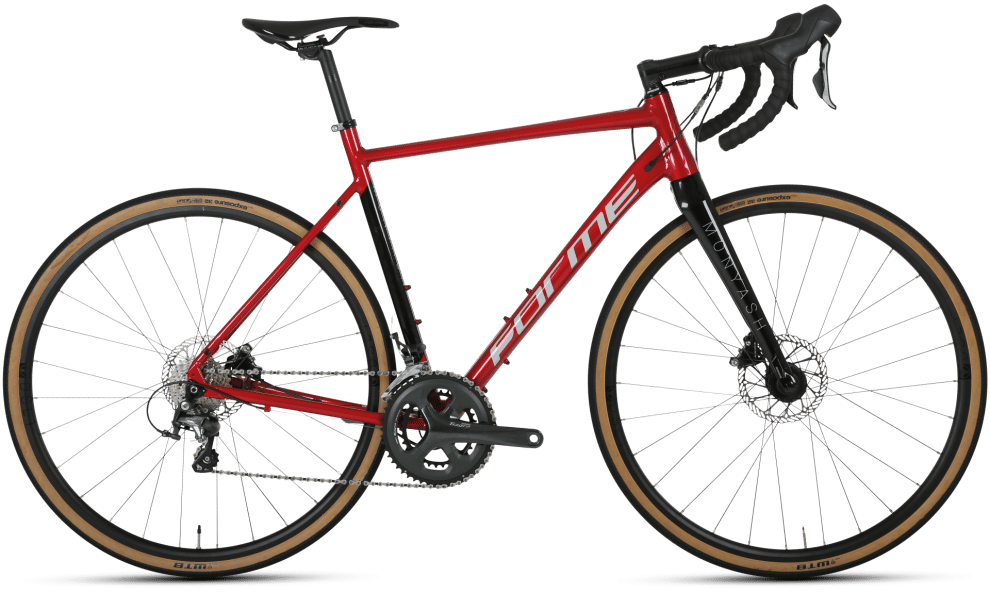

2019 Forme Monyash geometry
Full frame geometry for the 2019 Forme Monyash, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 527 | 352 | 73 | 70 | 85 | 515 | 480 | 430 | 991 | 48 |
| 52 | 549 | 362 | 73 | 70 | 110 | 531 | 520 | 430 | 1008 | 48 |
| 54 | 572 | 372 | 73 | 71 | 125 | 548 | 540 | 430 | 1018 | 48 |
| 56 | 595 | 382 | 73 | 71.5 | 150 | 565 | 560 | 430 | 1031 | 48 |
| 58 | 618 | 391 | 73 | 71.5 | 175 | 581 | 580 | 430 | 1041 | 48 |
All measurements in millimetres unless marked (°) for angles.
