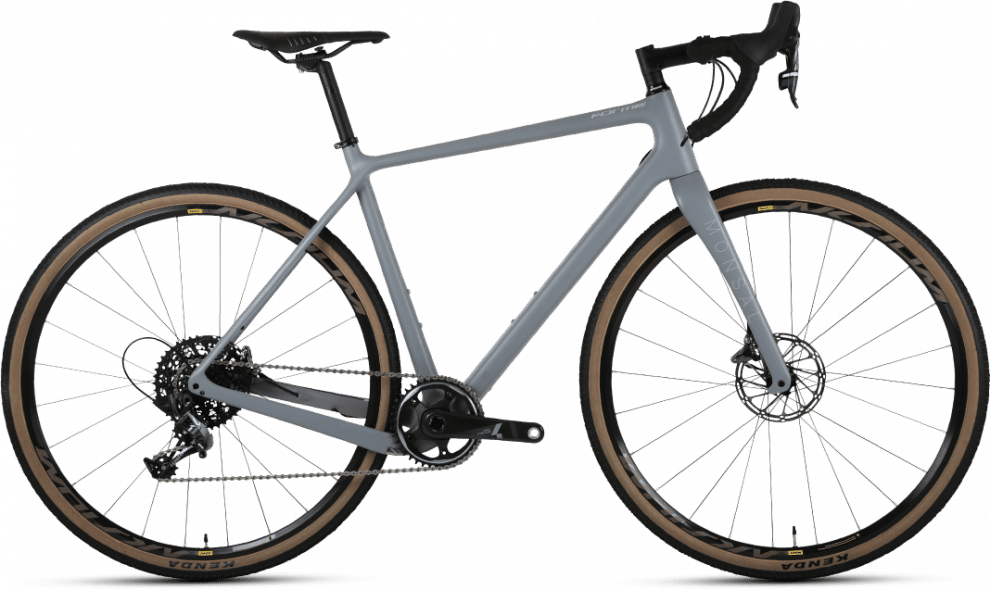

2018 Forme Monsal geometry
Full frame geometry for the 2018 Forme Monsal, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 546 | 378 | 72.5 | 71.1 | 125 | 550 | 490 | 425 | 1013 | 50 |
| 52 | 576 | 390 | 72.5 | 72.5 | 150 | 572 | 520 | 425 | 1021 | 50 |
| 55 | 604 | 402 | 72.5 | 72.5 | 180 | 593 | 550 | 425 | 1042 | 50 |
All measurements in millimetres unless marked (°) for angles.
