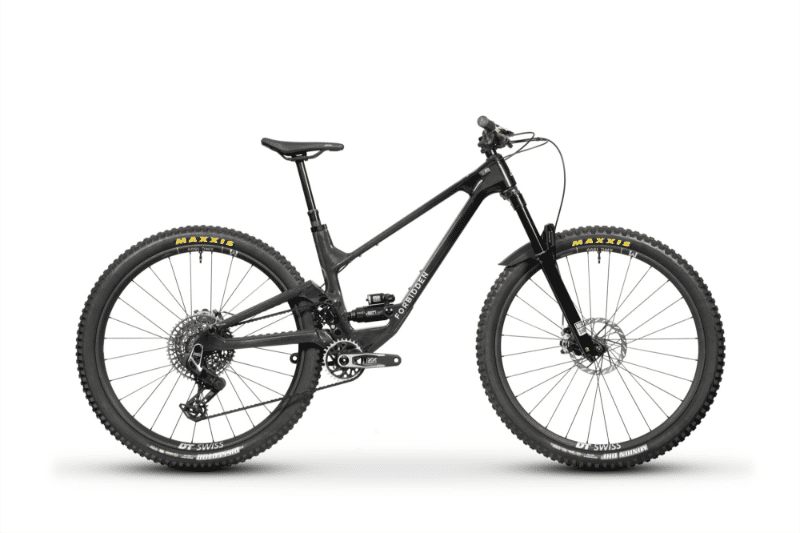

2026 Forbidden Druid V2 geometry
Full frame geometry for the 2026 Forbidden Druid V2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 610 | 440 | 77 | 65 | 90 | 581 | 400 | 720 | -35 | 754 | 423 | 1177 | 42 |
| S2 | 624 | 460 | 77 | 65 | 105 | 604 | 420 | 725 | -35 | 781 | 437 | 1218 | 42 |
| S3 | 637 | 480 | 77 | 65 | 120 | 627 | 440 | 728 | -35 | 807 | 452 | 1259 | 42 |
| S4 | 651 | 500 | 77 | 65 | 135 | 650 | 470 | 730 | -35 | 833 | 466 | 1300 | 42 |
All measurements in millimetres unless marked (°) for angles.
