2026 Forbidden · EDB

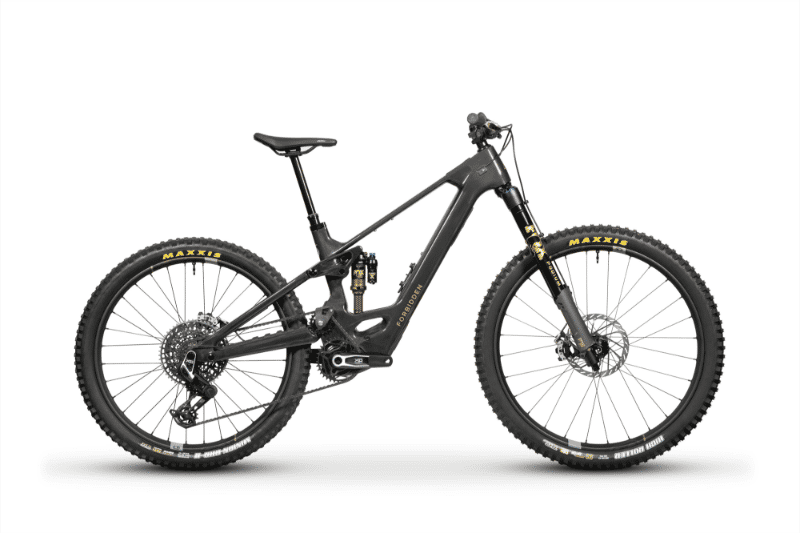

2026 Forbidden Druid E geometry
Full frame geometry for the 2026 Forbidden Druid E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 628 | 430 | 76.8 | 64 | 100 | 578 | 400 | 745 | -25 | 767 | 427 | 1194 | 44 |
| S2 | 649 | 447 | 76.8 | 64 | 123 | 599 | 420 | 745 | -25 | 794 | 442 | 1235 | 44 |
| S3 | 662 | 467 | 76.8 | 64 | 138 | 622 | 440 | 745 | -25 | 820 | 456 | 1276 | 44 |
| S4 | 676 | 487 | 76.8 | 64 | 153 | 646 | 470 | 745 | -25 | 847 | 471 | 1317 | 44 |
All measurements in millimetres unless marked (°) for angles.
