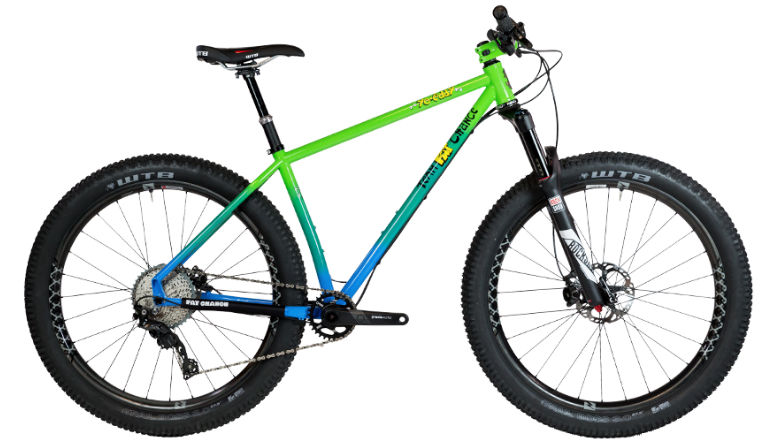

2017 Fat Chance Yo Eddy 2.1 geometry
Full frame geometry for the 2017 Fat Chance Yo Eddy 2.1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 374 | 72 | 68.5 | 90 | 575 | 381 | 795 | 47 | 429 | 1084 | 51 |
| M | 625 | 403 | 72 | 68.5 | 98 | 600 | 444 | 829 | 47 | 429 | 1111 | 51 |
| L | 641 | 418 | 72 | 68.5 | 115 | 620 | 481 | 855 | 47 | 429 | 1132 | 51 |
| XL | 665 | 425 | 72 | 68.5 | 130 | 640 | 519 | 885 | 47 | 429 | 1145 | 51 |
All measurements in millimetres unless marked (°) for angles.
