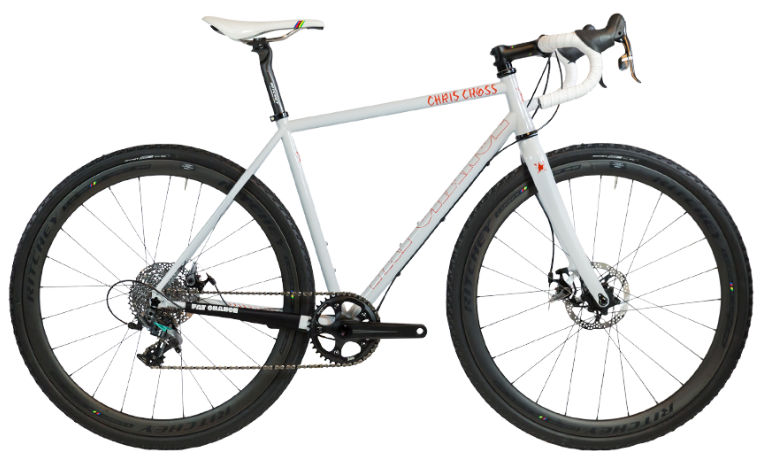

2017 Fat Chance Chris Cross geometry
Full frame geometry for the 2017 Fat Chance Chris Cross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 544 | 365 | 74 | 71 | 115 | 522 | 458 | 790 | 67 | 425 | 998 |
| S | 566 | 372 | 73.5 | 72 | 135 | 540 | 504 | 826 | 67 | 425 | 1003 |
| M | 587 | 375 | 73 | 72.5 | 155 | 555 | 538 | 855 | 67 | 425 | 1008 |
| L | 606 | 385 | 73 | 72.5 | 175 | 570 | 563 | 878 | 67 | 425 | 1023 |
| XL | 621 | 395 | 73 | 72.5 | 190 | 585 | 574 | 891 | 67 | 425 | 1039 |
| 2XL | 633 | 404 | 73 | 72.5 | 203 | 598 | 600 | 910 | 67 | 425 | 1052 |
All measurements in millimetres unless marked (°) for angles.
