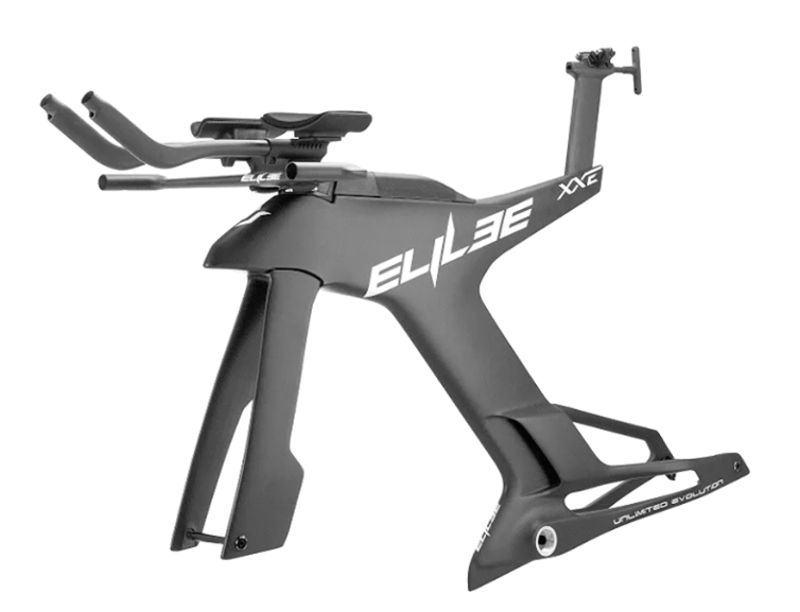

2023 Elilee Evoluntion XXE geometry
Full frame geometry for the 2023 Elilee Evoluntion XXE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 493 | 369 | 78 | 72.5 | 74 | 75 | 550 | 405 | 43 |
| S | 514 | 385 | 78 | 72 | 96 | 75 | 573 | 405 | 43 |
| L | 523 | 423 | 78 | 72.5 | 105 | 75 | 614 | 405 | 43 |
| M | 523 | 402 | 78 | 72.5 | 105 | 75 | 592 | 405 | 43 |
All measurements in millimetres unless marked (°) for angles.
