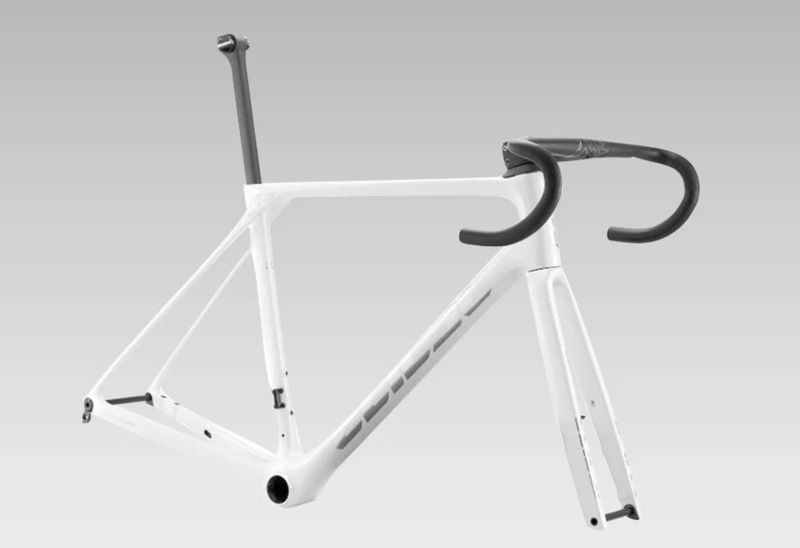

2024 Elilee Blize geometry
Full frame geometry for the 2024 Elilee Blize, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 512 | 367 | 75.5 | 71 | 118 | 500 | 472 | 72 | 573 | 405 | 47 |
| S | 530 | 375 | 75 | 72.3 | 132 | 517 | 498 | 72 | 576 | 405 | 47 |
| M | 539 | 385 | 74.8 | 73 | 139 | 531 | 498 | 72 | 582 | 405 | 47 |
| L | 573 | 396 | 74 | 73.5 | 167 | 560 | 531 | 72 | 595 | 408 | 44 |
| XL | 601 | 399 | 74 | 73.5 | 197 | 571 | 560 | 72 | 606 | 408 | 44 |
| XXL | 621 | 409 | 74 | 74 | 216 | 587 | 472 | 72 | 616 | 408 | 44 |
All measurements in millimetres unless marked (°) for angles.
