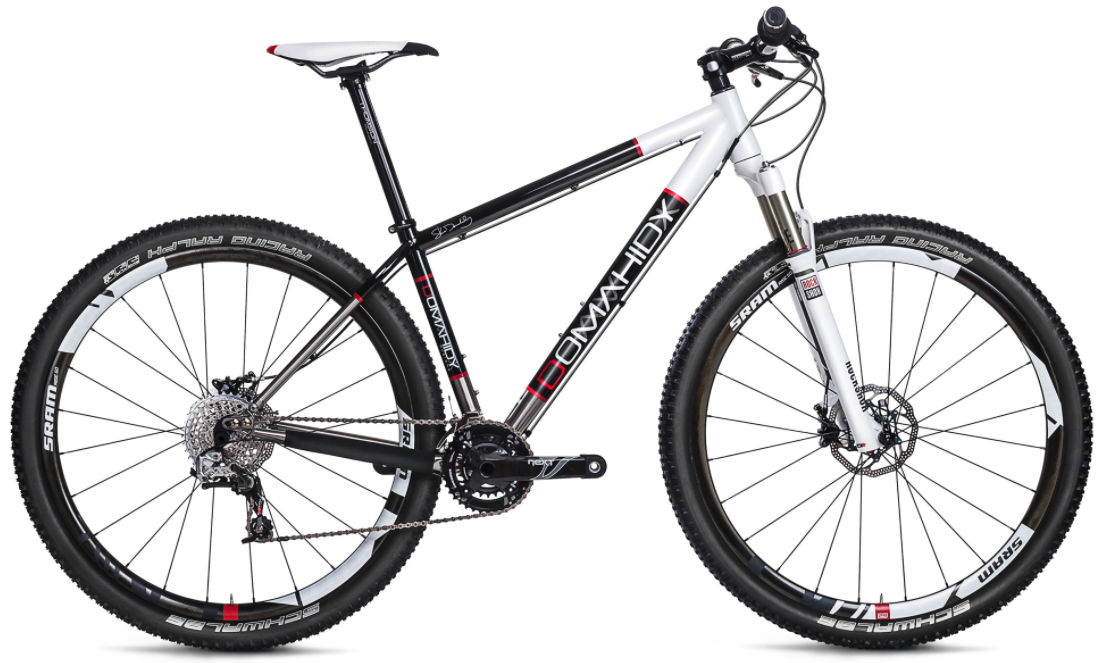

2015 Domahidy Titanium Hardtail geometry
Full frame geometry for the 2015 Domahidy Titanium Hardtail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 577 | 373 | 72.5 | 70 | 110 | 555 | 368 | 32 | 617 | 430 | 1045 |
| S | 578 | 401 | 72.5 | 70 | 110 | 583 | 390 | 32 | 645 | 430 | 1073 |
| M | 618 | 408 | 72 | 70.5 | 115 | 608 | 432 | 52 | 658 | 435 | 1087 |
| L | 628 | 425 | 72 | 70.5 | 125 | 628 | 480 | 53 | 678 | 435 | 1107 |
| XL | 642 | 434 | 71.5 | 70.5 | 140 | 648 | 530 | 53 | 692 | 435 | 1122 |
All measurements in millimetres unless marked (°) for angles.
