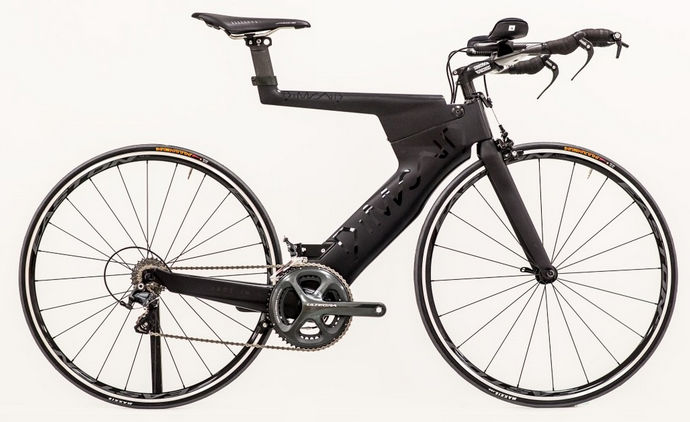

2013 Dimond Version 1 geometry
Full frame geometry for the 2013 Dimond Version 1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M-S | 495 | 392 | 77 | 74 | 92 | 540 | 650 | 66 | 569 | 393 | 953 | 43 | 51 |
| S | 495 | 392 | 77 | 74 | 92 | 524 | 598 | 66 | 569 | 393 | 953 | 43 | 51 |
| L | 514 | 437 | 81 | 73 | 107 | 540 | 661 | 65 | 620 | 393 | 1004 | 43 | 57 |
| M | 514 | 437 | 82 | 73 | 107 | 524 | 610 | 65 | 620 | 393 | 1004 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
