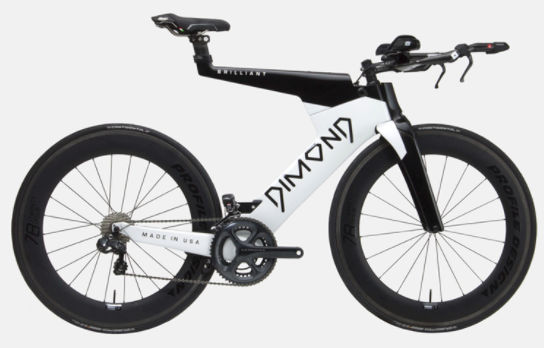

2016 Dimond Brilliant geometry
Full frame geometry for the 2016 Dimond Brilliant, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|
| XS | 490 | 390 | 79 | 72.5 | 75 | 571 | 400 |
| S | 515 | 405 | 79 | 72.5 | 75 | 587 | 400 |
| M | 540 | 425 | 79 | 72.5 | 75 | 616 | 400 |
| L | 585 | 440 | 79 | 72.5 | 75 | 650 | 400 |
All measurements in millimetres unless marked (°) for angles.
