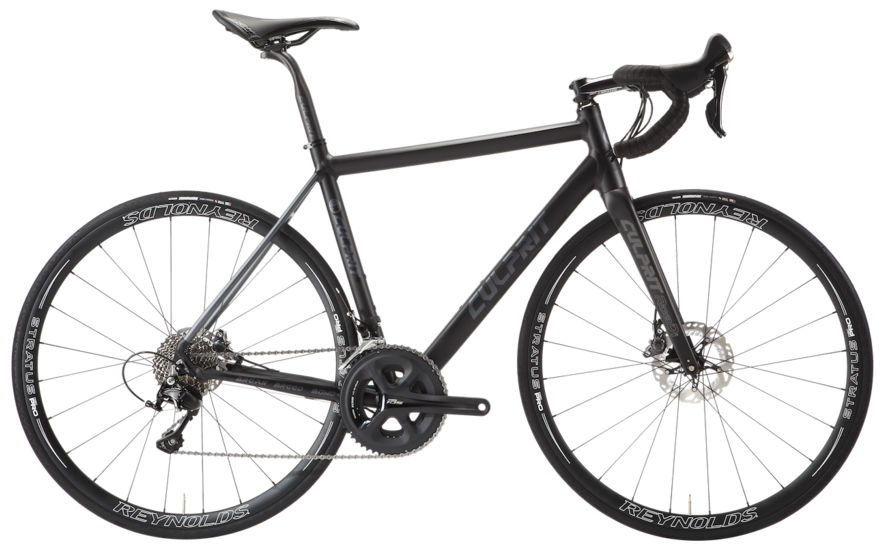

2014 Culprit RoaDi geometry
Full frame geometry for the 2014 Culprit RoaDi, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44.5 | 510 | 370 | 74.5 | 71.5 | 115 | 515 | 445 | 700 | 67 | 572 | 405 | 970 |
| 47 | 535 | 375 | 74 | 72 | 138 | 530 | 470 | 720 | 67 | 580 | 405 | 975 |
| 52 | 560 | 375 | 73 | 73 | 163 | 545 | 520 | 770 | 67 | 580 | 405 | 975 |
| 54.5 | 570 | 380 | 72.5 | 73 | 174 | 560 | 545 | 775 | 67 | 585 | 405 | 980 |
| 56 | 580 | 395 | 72.5 | 73 | 185 | 580 | 560 | 780 | 67 | 608 | 405 | 1000 |
| 59 | 620 | 415 | 72.5 | 73 | 227 | 610 | 590 | 840 | 67 | 635 | 405 | 1030 |
All measurements in millimetres unless marked (°) for angles.
