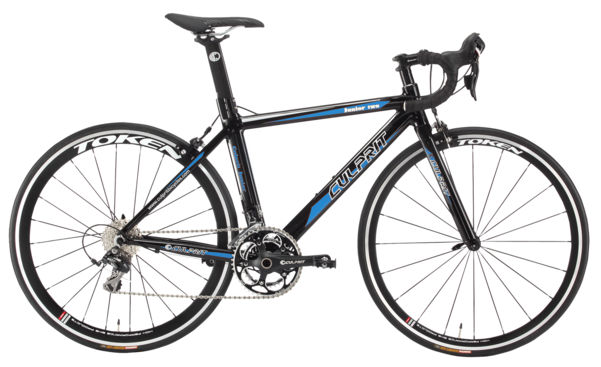

2014 Culprit Junior geometry
Full frame geometry for the 2014 Culprit Junior, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OS | 361 | 326 | 75 | 70.5 | 100 | 422 | 350 | 550 | 15 | 490 | 315 | 804 | 35 |
| Two | 470 | 424 | 74.5 | 71 | 105 | 495 | 450 | 686 | 45 | 560 | 390 | 946 | 45 |
All measurements in millimetres unless marked (°) for angles.
