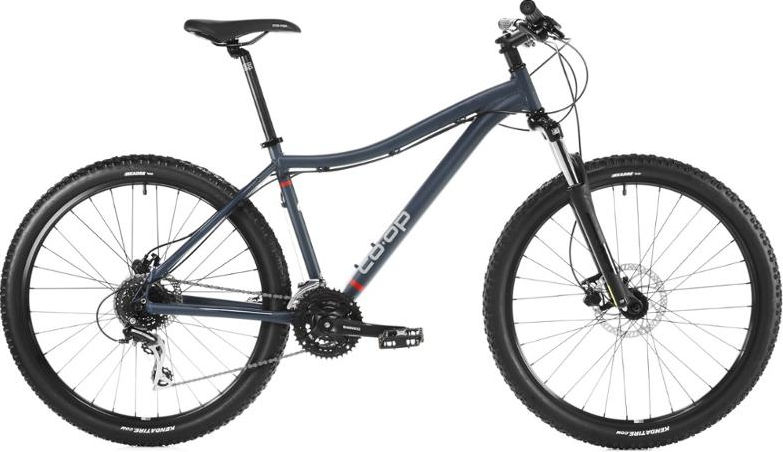

2019 Co-op / REI DRT 1 geometry
Full frame geometry for the 2019 Co-op / REI DRT 1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 574 | 435 | 73.5 | 69 | 90 | 605 | 410 | 440 | 1119 | 40 |
| S | 574 | 417 | 74 | 69 | 90 | 585 | 375 | 440 | 1099 | 40 |
| L | 583 | 447 | 73 | 69 | 100 | 625 | 445 | 440 | 1134 | 40 |
| XL | 607 | 460 | 73 | 69 | 125 | 645 | 480 | 440 | 1156 | 40 |
All measurements in millimetres unless marked (°) for angles.
