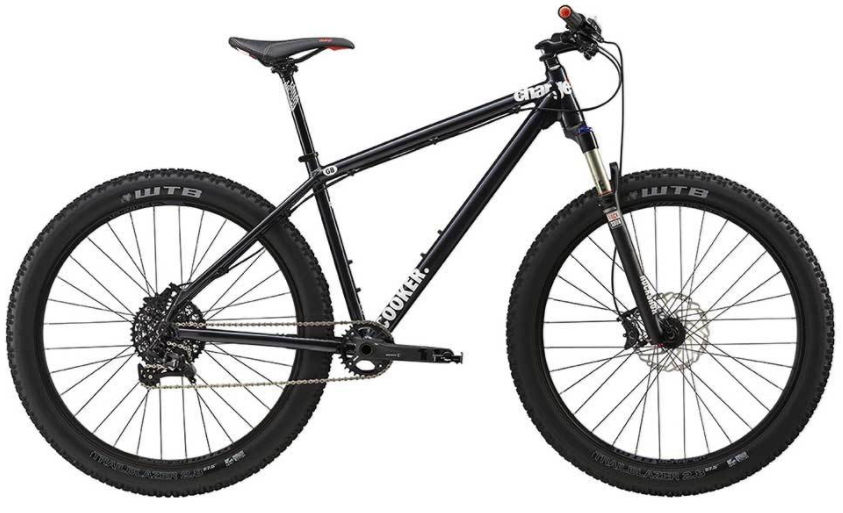

2017 Charge Cooker Midi geometry
Full frame geometry for the 2017 Charge Cooker Midi, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 378 | 73.5 | 70 | 125 | 560 | 395 | 774 | 35 | 644 | 435 | 1076 | 51 | 80 |
| M | 625 | 412 | 73.5 | 70 | 135 | 597 | 446 | 805 | 35 | 681 | 435 | 1114 | 51 | 80 |
| L | 634 | 435 | 73.5 | 70 | 145 | 623 | 485 | 830 | 35 | 708 | 435 | 1140 | 51 | 80 |
| XL | 649 | 450 | 73.5 | 70 | 160 | 642 | 533 | 862 | 35 | 728 | 435 | 1160 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
