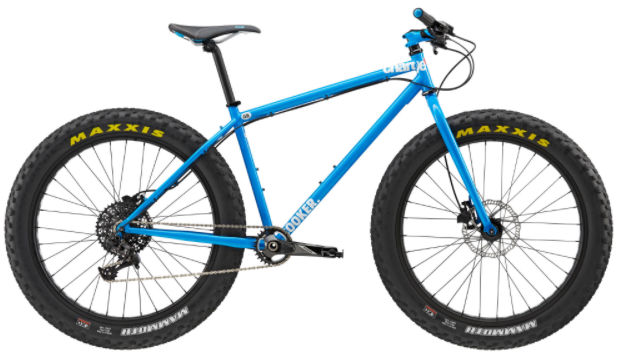

2015 Charge Cooker Maxi geometry
Full frame geometry for the 2015 Charge Cooker Maxi, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 558 | 417 | 73.5 | 71 | 105 | 582 | 395 | 778 | 50 | 450 | 1087 | 46 |
| M | 568 | 435 | 73.5 | 71 | 115 | 603 | 446 | 792 | 50 | 450 | 1108 | 46 |
| L | 582 | 453 | 73.5 | 71 | 130 | 625 | 490 | 823 | 50 | 450 | 1131 | 46 |
| XL | 596 | 467 | 73.5 | 71 | 145 | 644 | 533 | 853 | 50 | 450 | 1151 | 46 |
All measurements in millimetres unless marked (°) for angles.
