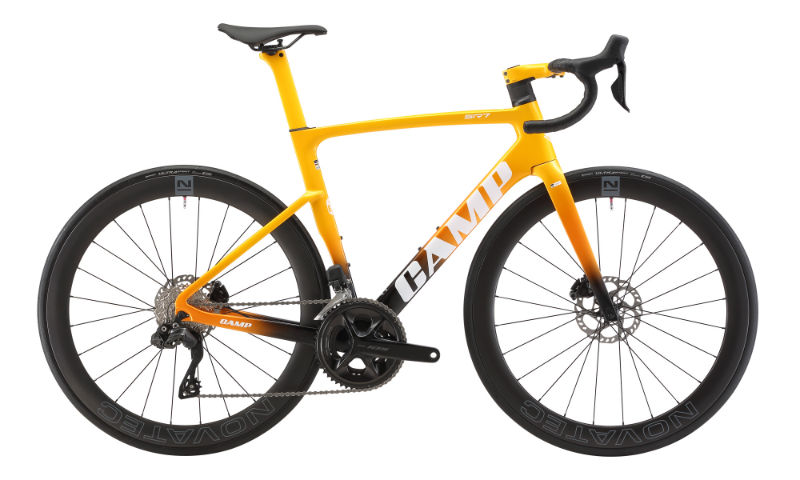

2023 Camp SR7 geometry
Full frame geometry for the 2023 Camp SR7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 440 | 512.8 | 356.3 | 75.3 | 71.3 | 108 | 490.9 | 735.1 | 73 | 568.3 | 410 | 967 | 46 |
| 460 | 523.3 | 362.9 | 75.3 | 71.3 | 115 | 500.2 | 756.4 | 73 | 568.6 | 410 | 967.3 | 46 |
| 490 | 534.1 | 370.8 | 74 | 72.5 | 123 | 524 | 776.3 | 72 | 569.3 | 410 | 968.4 | 46 |
| 510 | 552.2 | 376.7 | 74 | 72.5 | 142 | 535.1 | 795 | 72 | 580.9 | 410 | 980 | 46 |
| 530 | 576.3 | 385.2 | 73 | 72.5 | 167 | 561.4 | 820.2 | 72 | 595.7 | 410 | 995 | 46 |
| 560 | 600.7 | 393.7 | 73 | 73 | 193 | 577.3 | 849.6 | 70 | 608 | 410 | 1008 | 46 |
All measurements in millimetres unless marked (°) for angles.
