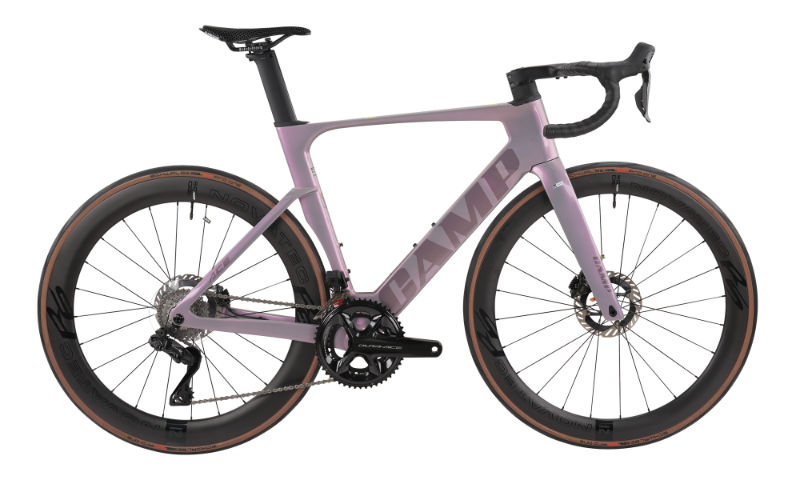

2025 Camp ACE II geometry
Full frame geometry for the 2025 Camp ACE II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 460 | 516 | 375 | 74.5 | 71 | 115 | 518 | 460 | 68 | 410 | 976 | 45 |
| 490 | 524 | 380 | 73.5 | 72.5 | 120 | 535 | 490 | 68 | 410 | 970 | 45 |
| 520 | 545 | 385 | 73 | 73 | 140 | 552 | 520 | 70 | 410 | 977 | 45 |
| 54 | 564 | 395 | 73 | 73 | 160 | 567 | 540 | 68 | 410 | 993 | 45 |
All measurements in millimetres unless marked (°) for angles.
