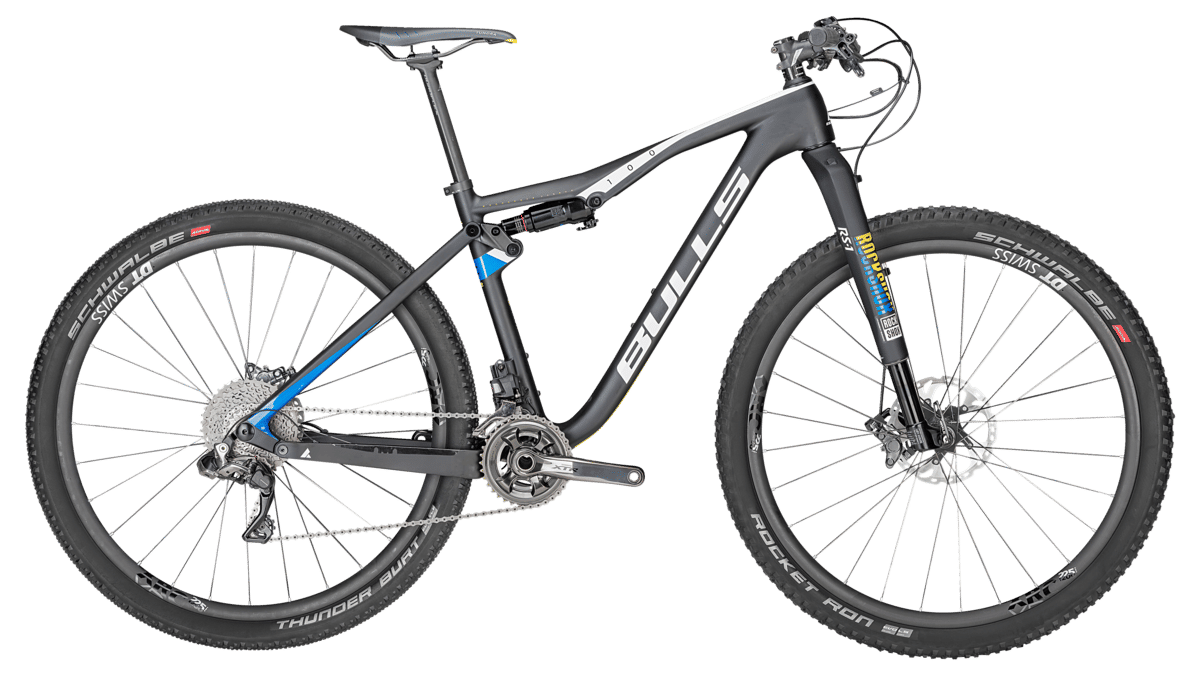

2017 Bulls Wild Edge geometry
Full frame geometry for the 2017 Bulls Wild Edge, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 428 | 74 | 71 | 100 | 603 | 460 | 40 | 445 | 1118 |
| L | 619 | 443 | 74 | 71 | 110 | 620 | 480 | 40 | 445 | 1136 |
| XL | 648 | 458 | 74 | 71 | 140 | 643 | 540 | 40 | 445 | 1161 |
All measurements in millimetres unless marked (°) for angles.
