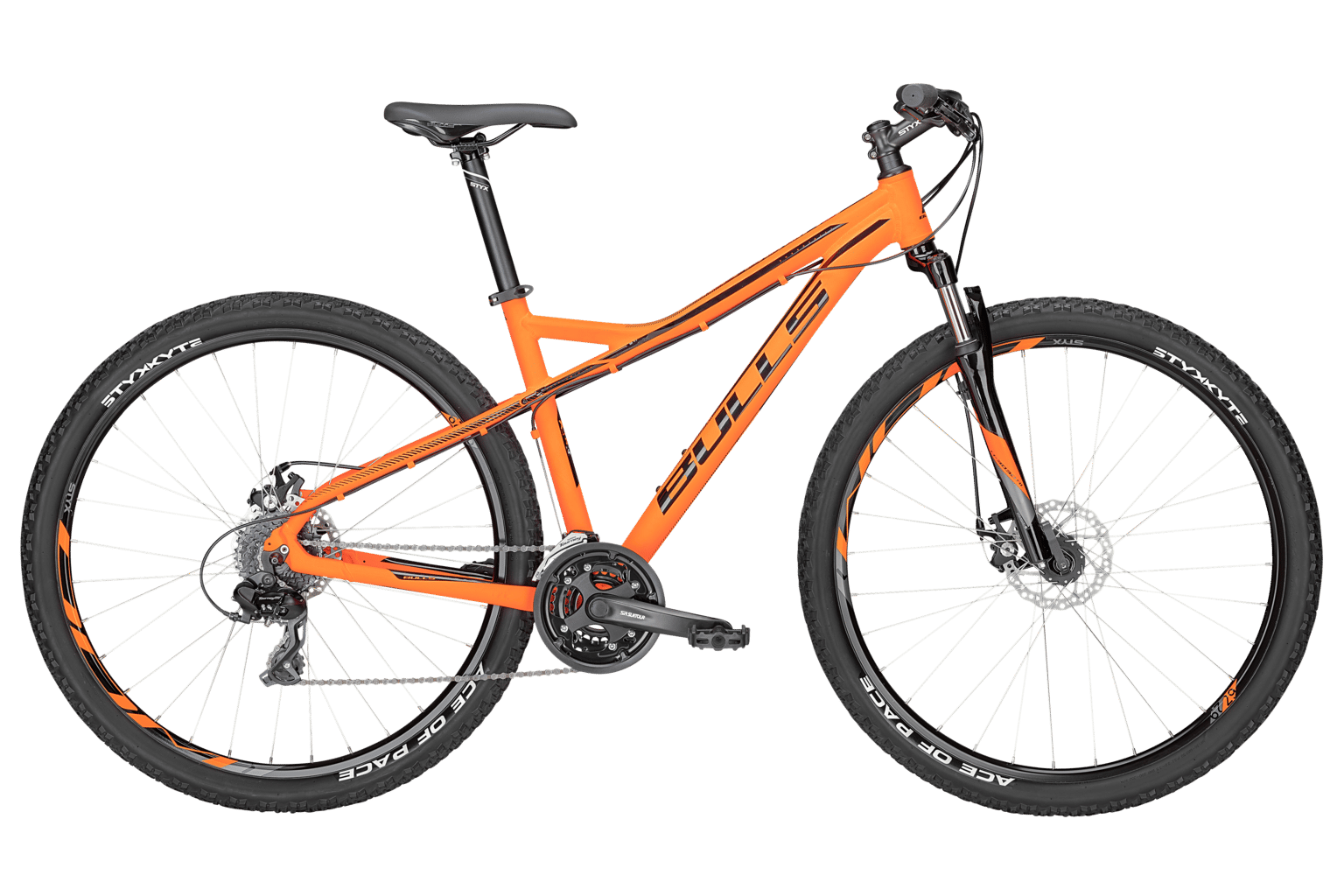

2017 Bulls Sharptail Disc 29 geometry
Full frame geometry for the 2017 Bulls Sharptail Disc 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 627 | 403 | 73 | 71 | 100 | 595 | 460 | 60 | 455 | 1097 |
| 41 | 630 | 388 | 74 | 71 | 100 | 575 | 410 | 65 | 455 | 1087 |
| 51 | 648 | 411 | 73 | 72 | 120 | 615 | 510 | 60 | 460 | 1111 |
| 56 | 667 | 418 | 72 | 72 | 145 | 635 | 560 | 55 | 460 | 1127 |
All measurements in millimetres unless marked (°) for angles.
