2017 Bulls · MHW

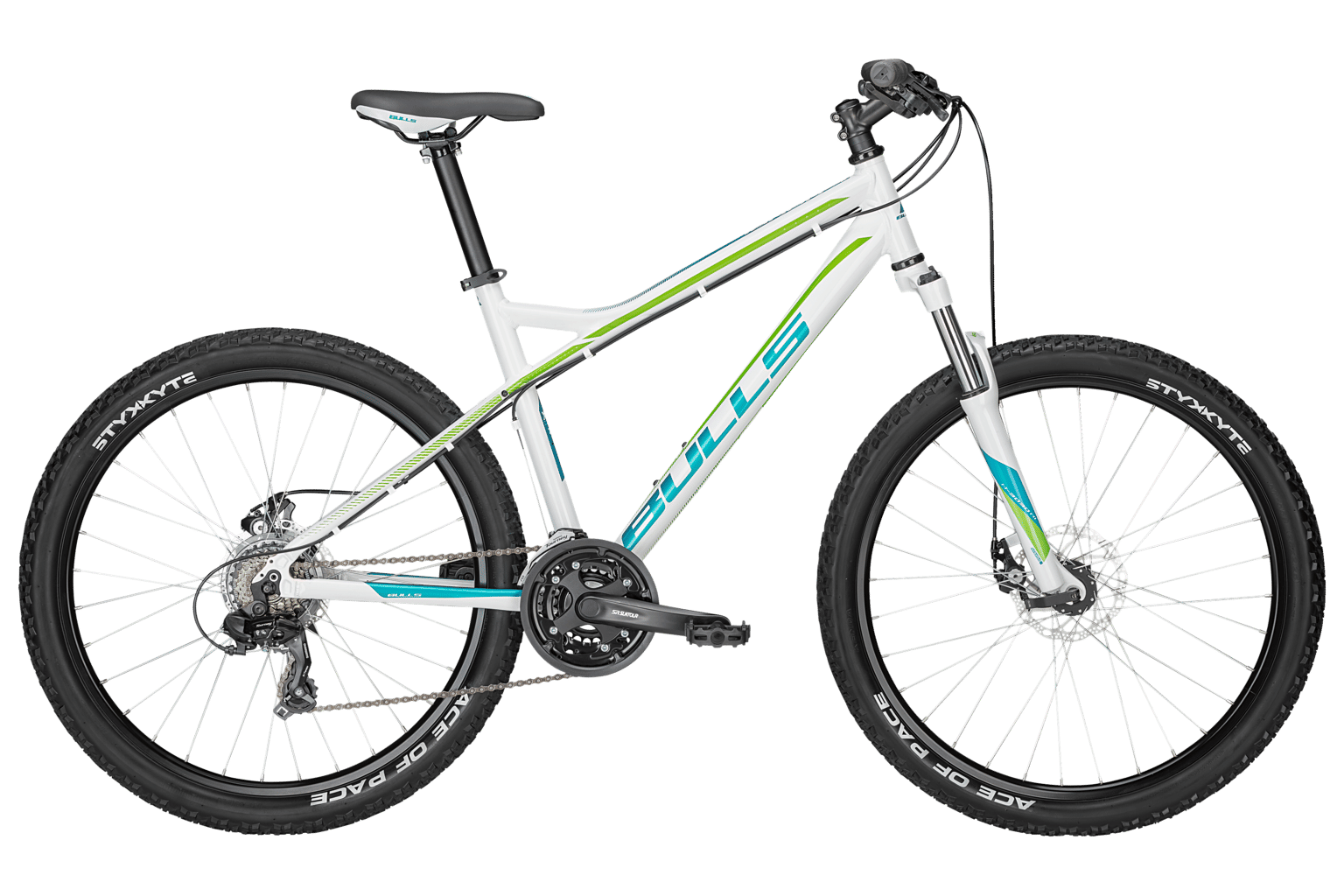

2017 Bulls Nandi 26 geometry
Full frame geometry for the 2017 Bulls Nandi 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 582 | 367 | 73 | 70 | 130 | 545 | 410 | 35 | 425 | 1032 |
| XS | 582 | 357 | 73 | 70 | 130 | 535 | 370 | 35 | 425 | 1022 |
| M | 587 | 381 | 73 | 70 | 140 | 560 | 460 | 30 | 425 | 1050 |
| L | 601 | 391 | 73 | 70 | 155 | 575 | 510 | 30 | 425 | 1066 |
All measurements in millimetres unless marked (°) for angles.
