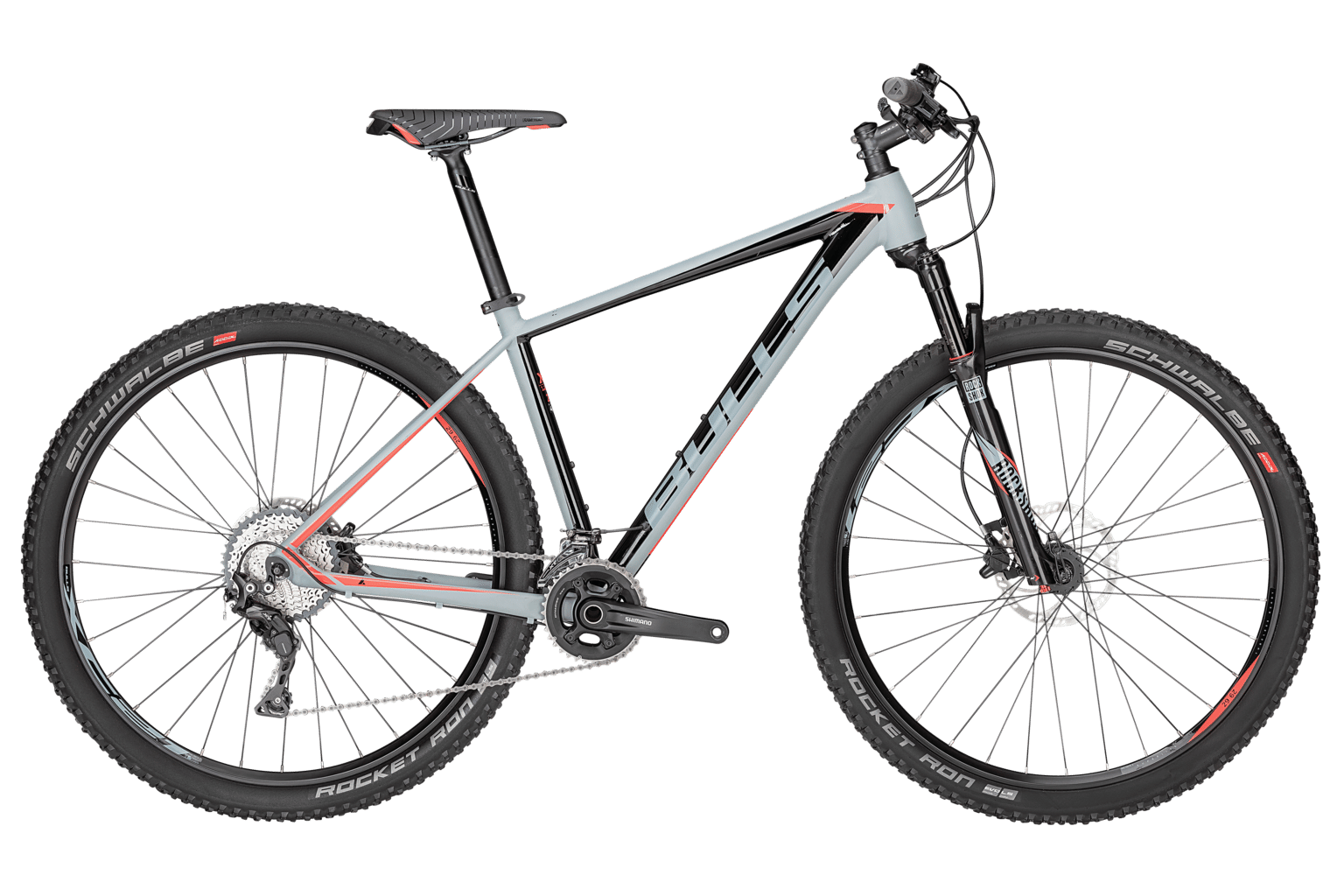

2017 Bulls Copperhead 29 geometry
Full frame geometry for the 2017 Bulls Copperhead 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 616 | 407 | 73 | 71 | 100 | 595 | 460 | 60 | 445 | 1092 |
| S | 621 | 391 | 74 | 71 | 100 | 575 | 410 | 65 | 440 | 1071 |
| L | 630 | 422 | 73 | 71 | 115 | 615 | 510 | 60 | 445 | 1113 |
| XL | 651 | 430 | 73 | 71 | 140 | 635 | 560 | 55 | 450 | 1129 |
| XXL | 698 | 435 | 73 | 71 | 190 | 655 | 610 | 55 | 450 | 1151 |
All measurements in millimetres unless marked (°) for angles.
