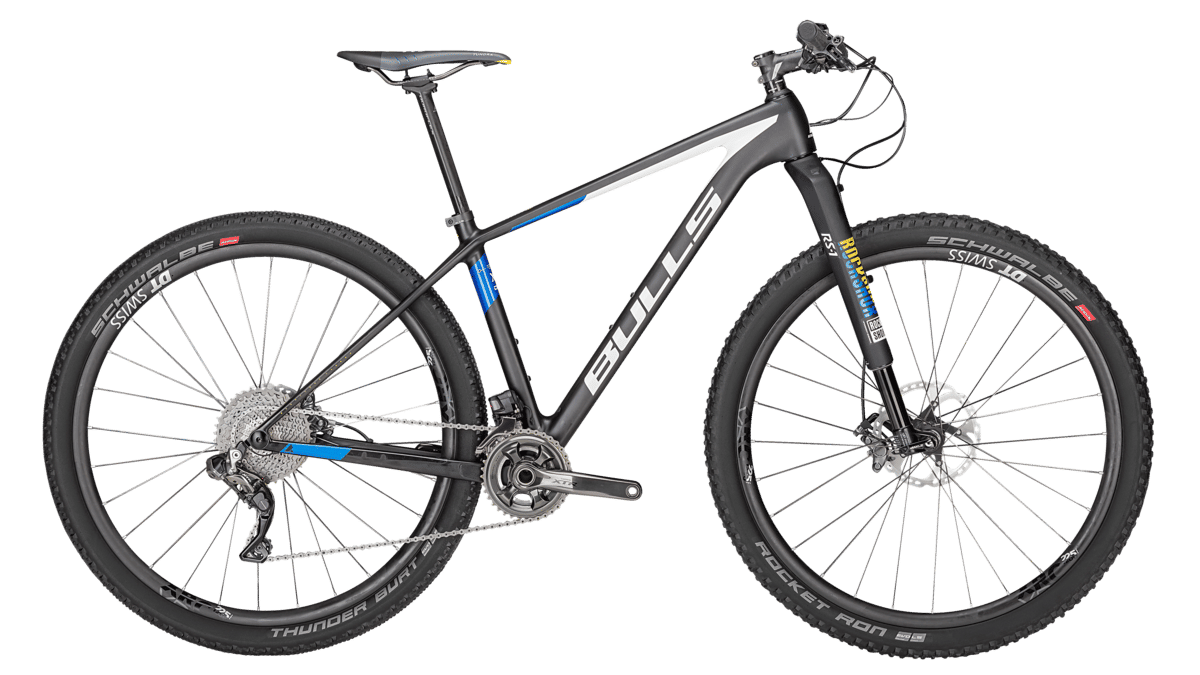

2017 Bulls Black Adder 29 geometry
Full frame geometry for the 2017 Bulls Black Adder 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 619 | 412 | 74 | 71 | 100 | 595 | 440 | 60 | 435 | 1088 |
| S | 619 | 398 | 74 | 71 | 95 | 575 | 410 | 65 | 430 | 1067 |
| L | 628 | 434 | 74 | 71 | 110 | 620 | 480 | 60 | 435 | 1114 |
| XL | 654 | 440 | 73 | 71 | 140 | 640 | 540 | 55 | 440 | 1131 |
All measurements in millimetres unless marked (°) for angles.
